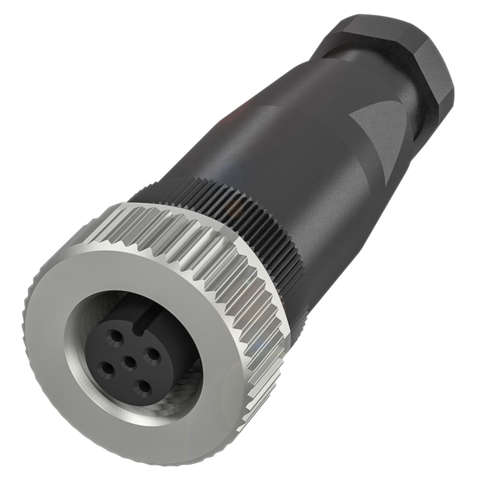

Balluff BCC M435-0000-1A-000-41X575-000 Field attachable
Balluff BCC M435-0000-1A-000-41X575-000 Field attachable

Balluff BCC M435-0000-1A-000-41X575-000 Field attachable

This field-attachable connector supports 5-pin M12x1 connections with a cable diameter of 4–6 mm. It operates with a voltage of up to 125 V and is rated for currents up to 4.0 A. The connector is IP67-rated and features screw terminals for secure wiring in harsh environments.
Vendor: Balluff
SKU: BCC06ZF
Availability: In stock
Product type: Field Sensing & Switching
Please hurry! Only 25 left in stock
Description
Description
x

This field-attachable connector supports 5-pin M12x1 connections with a cable diameter of 4–6 mm. It operates with a voltage of up to 125 V and is rated for currents up to 4.0 A. The connector is IP67-rated and features screw terminals for secure wiring in harsh environments.

Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE cURus WEEE
Material: Housing / GripPA
Material: Jacket / Cover NutDie-cast Zinc
Material: Sensing Surface / ContactsPA
Cable Diameter (mm)4mm ... 6mm
Connection TypeM12x1 / Female / Straight / 5-pin / A-coded
Connection StyleScrew terminals
Tightening Torque0.6 Nm
Operating Voltage 125 VDC / 125 VAC
Current Rating / Rated Current4 A
Documents
Documents
x
Download Datasheet
