Description

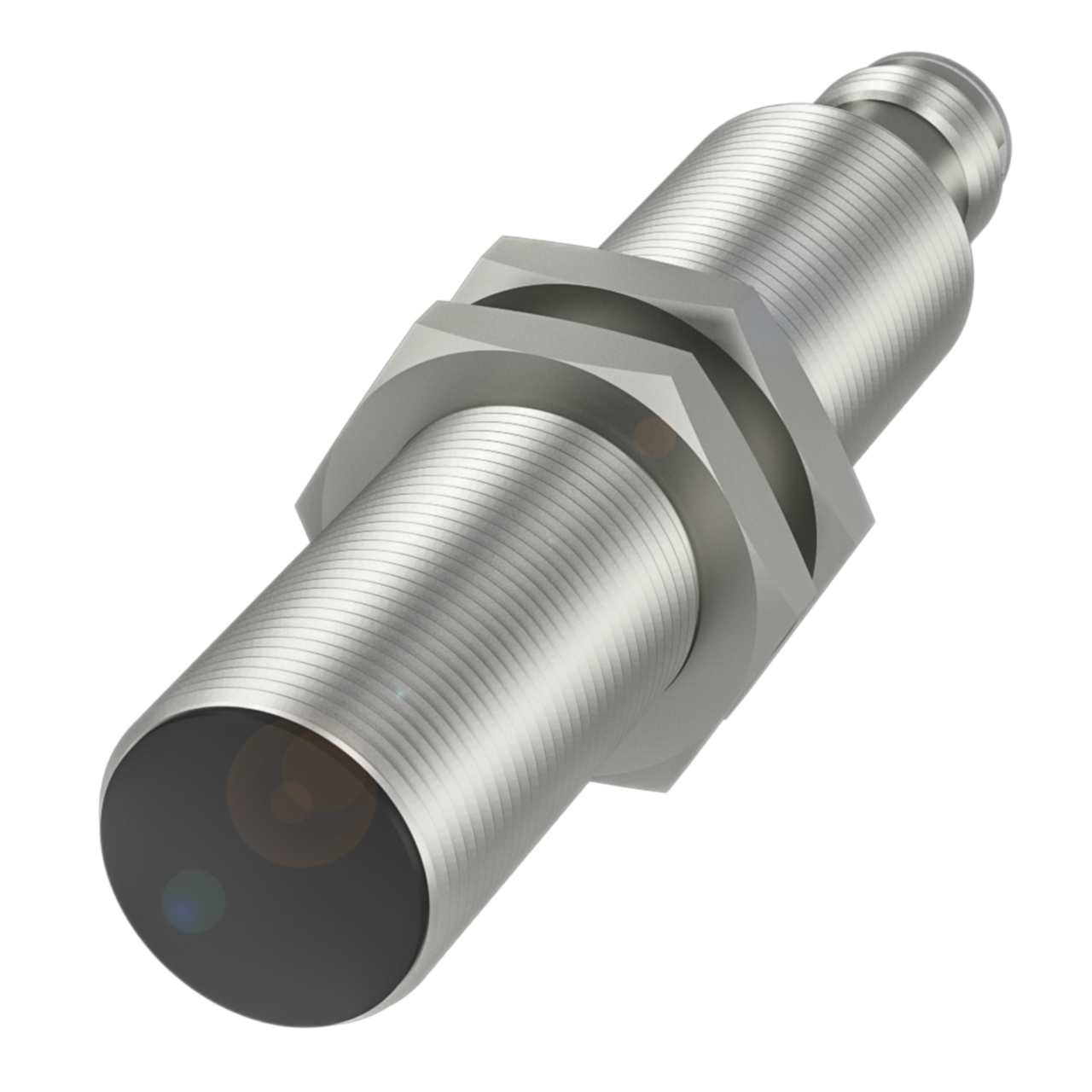

xThis inductive sensor provides accurate object detection with a range of 5 mm. It features a nickel-free brass housing, is rated for IP68, and operates effectively in temperatures from -40°C to 85°C, ideal for challenging environments.
Specifications
x| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Brass / Nickel-free coated |
| Material: Sensing Surface / Contacts | PBT |
| Size | M18x1 |
| Connection Type | M12x1 / Male / 3-pin / A-coded |
| Rated Operating Distance (mm) | 5.0mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 2000 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Flush mounting |
| Rated Operating Current | 100mA |
