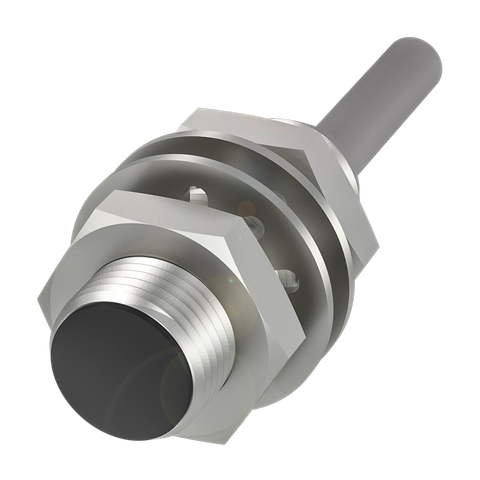

BES00P9 (BES 516-325-E4-C-03) Inductive Proximity Switches and Proximity Sensors

Product Information

• Dimension: Ø 12 x 33 mm
• Style Housing: M12x1
• Installation: for flush mounting
• Range: 2 mm
• Switching output: PNP normally open (NO)
• Switching frequency: 3500 Hz
• Housing material: Brass, Nickel-free coated
• Material sensing surface: PBT
• Connection: Cable, 3.00 m, PVC
• Operating voltage Ub: 10...30 VDC
• Ambient temperature: -25...70 °C
• IP rating: IP68, according to BWN Pr 20
• Approval/Conformity: CE, cULus, WEEE

Product Features

• Cable options:
  • Cable, 3.00 m, PVC
  • Cable, 2.00 m, PVC
  • Cable, 3.00 m, TPU
  • Cable, 5.00 m, PVC
  • Cable, 5.00 m, TPU
  • Cable with connector, M12x1-Male, 4-pin, 0.50 m, TPU

Downloads

• Datasheet

Classifications

• ECLASS 10.1: 27-27-01-01
• ECLASS 11.0: 27-27-01-01
• ECLASS 12.0: 27-27-40-01
• ECLASS 13.0: 27-27-40-01
• ECLASS 14.0: 27-27-40-01
• ETIM 4.0: EC002714
• UNSPSC 11: 41111926
