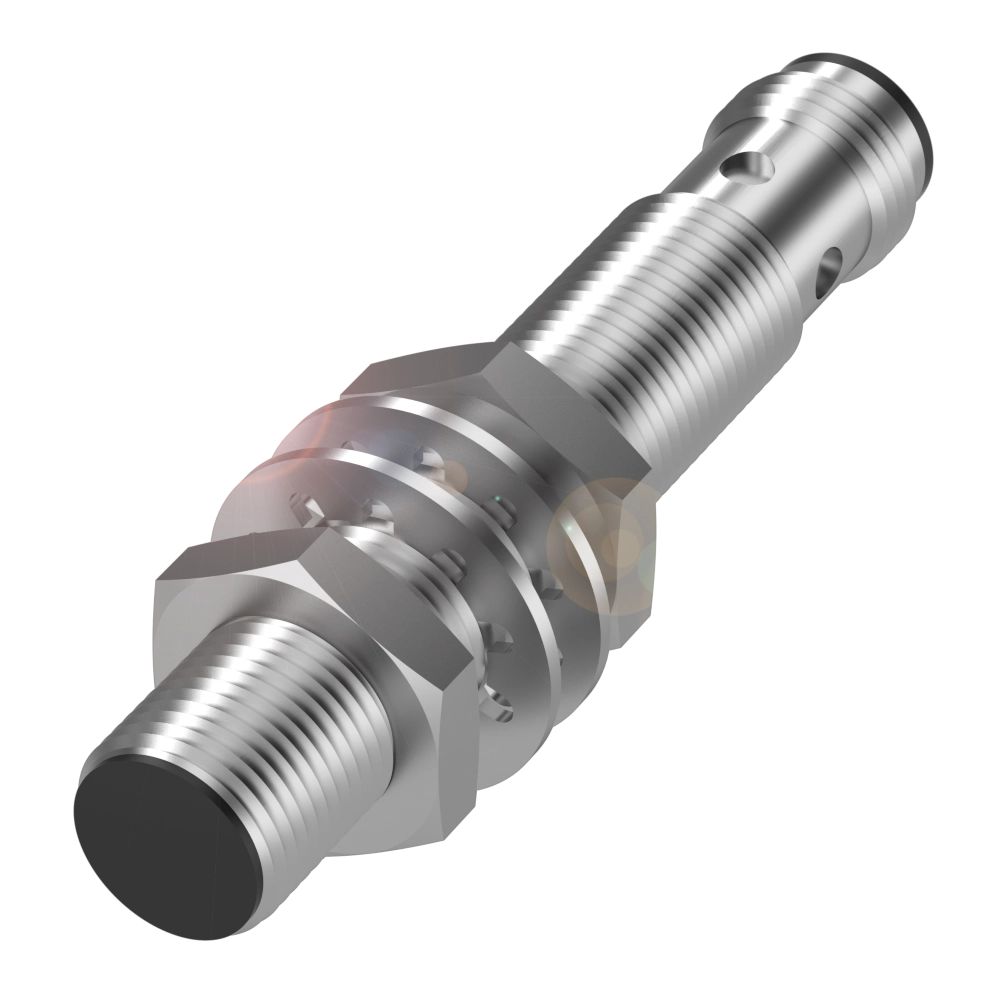

Balluff Inductive standard sensor, PNP, NO, M12, flush, M12 4-pin Balluff
Balluff Inductive standard sensor, PNP, NO, M12, flush, M12 4-pin Balluff

Balluff Inductive standard sensor, PNP, NO, M12, flush, M12 4-pin

nan
Vendor: Balluff
SKU: BES01C7
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
nan
Specifications
Specifications
x
IP RatingIP68
Compliance/CertificationsCE / UKCA / cULus / WEEE / IEC 60947-5-2
Material: Housing / GripBrass / Nickel-free coated
Material: Sensing Surface / ContactsPBT
SizeM12x1
Connection TypeM12x1 / Male / 4-pin / A-coded
Tightening Torque10Nm
Rated Operating Distance (mm)4mm
Switching OutputPNP normally closed (NC)
Switching Frequency (Hz)2500 Hz
Rated Insulation Voltage250 VAC
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
Mounting TypeFlush mounting
Rated Operating Current200 mA
Documents
Documents
x
Download Datasheet
