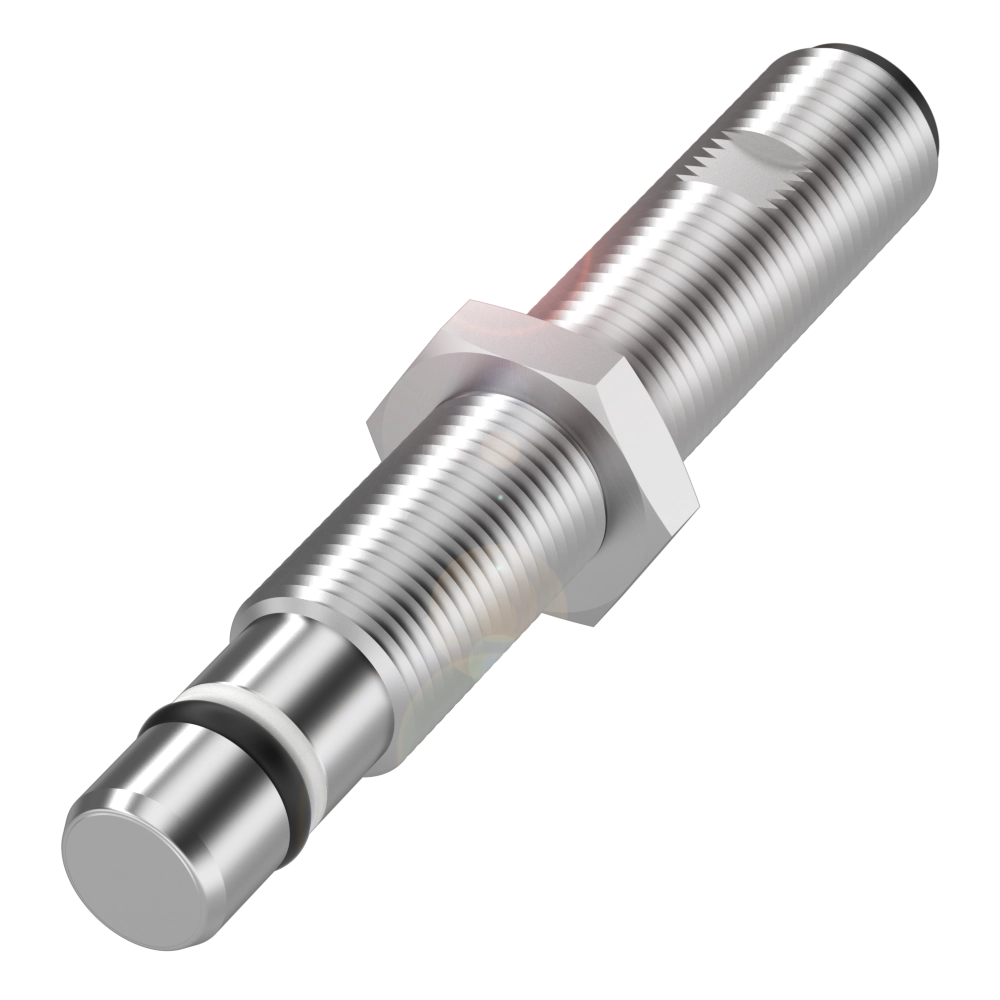

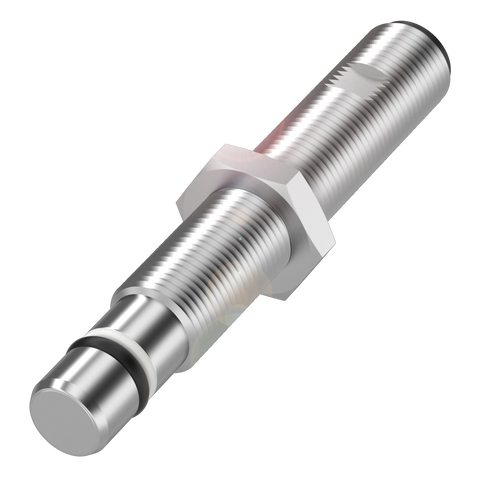

Balluff Pressure-rated inductive sensor, PNP, NO, M12, flush, M12 4-pin

Vendor: Balluff
SKU: BHS001L
Availability: Out Of Stock
Product type: Field Sensing & Switching
Please hurry! Only 0 left in stock
Description
Description
x
Specifications
Specifications
x
IP RatingIP68
Compliance/CertificationsIEC 60947-5-2 / CE UKCA cULus WEEE
Material: Housing / GripStainless Steel
Material: Jacket / Cover NutPTFE
Material: Sensing Surface / ContactsEP
Part Length (mm)78mm
Part Diameter (mm)12mm
Connection TypeM12x1 / Male / 4-pin / A-code
Connection StyleM12x1
Tightening Torque15 Nm ±10 %
Rated Operating Distance (mm)1.5mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)1000Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Mounting TypeFlush mounting
Current consumption
Current Rating / Rated Current200 mA
Documents
Documents
x
Download Datasheet
