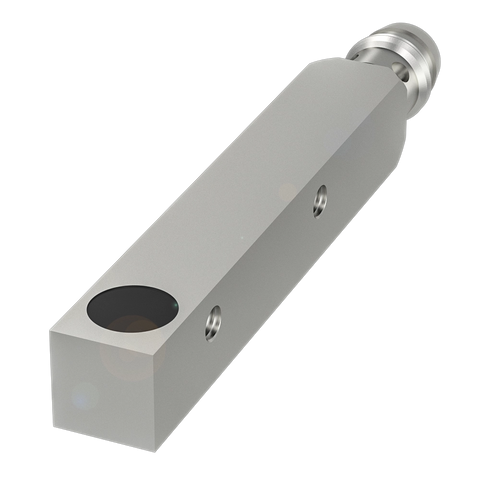

Balluff Inductive standard sensor, PNP, NO, flush, M8 3-pin Balluff
Balluff Inductive standard sensor, PNP, NO, flush, M8 3-pin Balluff

Balluff Inductive standard sensor, PNP, NO, flush, M8 3-pin

Vendor: Balluff
SKU: BES0180
Availability: Out Of Stock
Product type: Field Sensing & Switching
Please hurry! Only 0 left in stock
Description
Description
x
Specifications
Specifications
x
IP RatingIP68
Compliance/CertificationscULus CE WEEE / IEC 60947-5-2
Material: Housing / GripStainless steel
Material: Jacket / Cover NutPUR
Material: Sensing Surface / ContactsPBT
SizeM8x1
Cable Length (mm)3mm
Cable Diameter (mm)3mm
Conductor Cross-section0.14 mm²
Tightening Torque8 Nm
Rated Operating Distance (mm)1.5mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)5000 Hz
Rated Insulation Voltage250 VAC
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
Mounting TypeFlush mounting
Rated Operating Current200 mA
Documents
Documents
x
Download Datasheet
