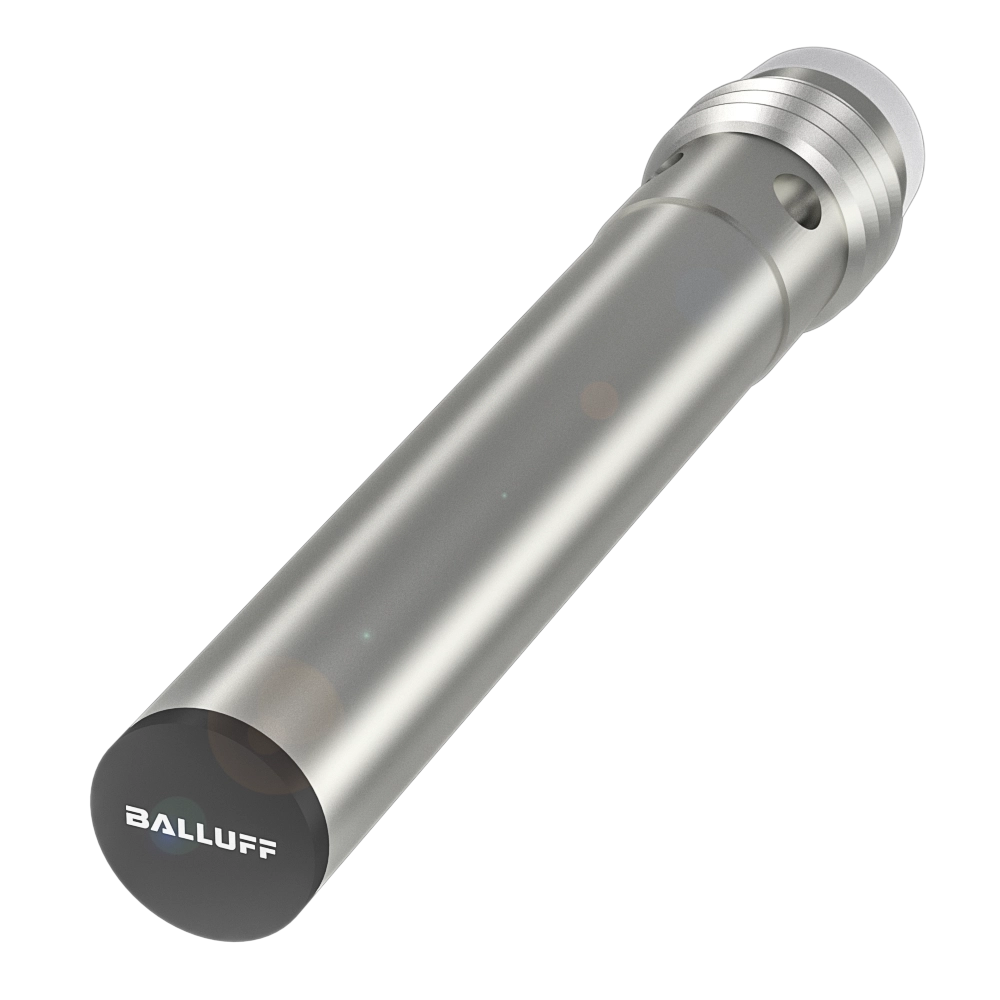

Balluff Inductive standard sensor, PNP, NO, D6.5, flush, M8 3-pin Part number BES00ZU

This inductive sensor detects metal targets at a rated operating distance of 2 mm and provides a PNP normally open output switching at up to 5000 Hz. Its D6.5 stainless steel housing with flush mounting suits installation in confined spaces where the sensor face sits level with surrounding machine structure, while the IP68 rating supports use in wet or washdown environments. The M8x1 three-pin connector allows straightforward integration into panels and machine wiring operating between 10 and 30 VDC.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M8x1 / Male / 3-pin
• Output: PNP normally open (NO)
• Mounting: Flush mounting
