Balluff Pressure-rated inductive sensor, PNP, NO, M18, flush, M12 4-pin Part number BHS001N

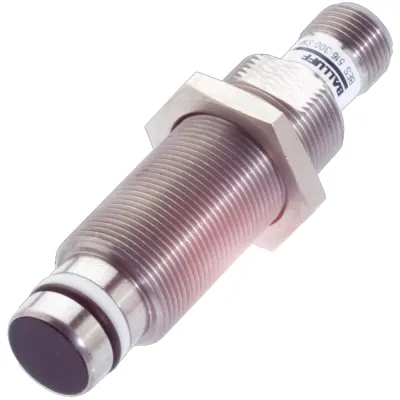

This M18 flush-mount inductive sensor detects metallic targets at a rated operating distance of 1.5mm and provides a PNP normally open output via an M12x1, 4-pin A-coded male connector. The stainless steel housing and IP68 rating suit pressure-rated applications and washdown or harsh industrial environments, with an EP sensing face and NBR gasket for sealing. It operates from 10-30 VDC, switches at up to 1000 Hz, and is specified with a tightening torque of 40 Nm ±10% for panel or machine mounting.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Mounting: M18x1
