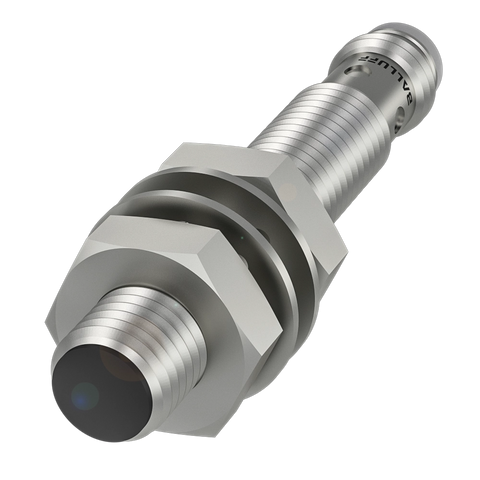

Balluff Inductive standard sensor, PNP, NO, M8, flush, M8 3-pin Balluff
Balluff Inductive standard sensor, PNP, NO, M8, flush, M8 3-pin Balluff

Balluff Inductive standard sensor, PNP, NO, M8, flush, M8 3-pin

Vendor: Balluff
SKU: BES00P7
Availability: In stock (Purchase on demand)
Product type: Field Sensing & Switching
Please hurry! Only 10 left in stock
Description
Description
x
Specifications
Specifications
x
IP RatingIP68
Compliance/CertificationsIEC 60947-5-2 / CE UKCA cULus WEEE
Material: Housing / GripStainless Steel
Material: Sensing Surface / ContactsPBT
Part Length (mm)45 / 33mm
Part Diameter (mm)8mm
Connection TypeM8x1 / Male / 3-pin
Connection StyleM8x1
Tightening Torque8 Nm
Rated Operating Distance (mm)2mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)5000Hz
Rated Insulation Voltage250 VAC
Operating Voltage 10 - 30 VDC
Mounting TypeFlush mounting
Current consumption
Current Rating / Rated Current200 mA
Documents
Documents
x
Download Datasheet
