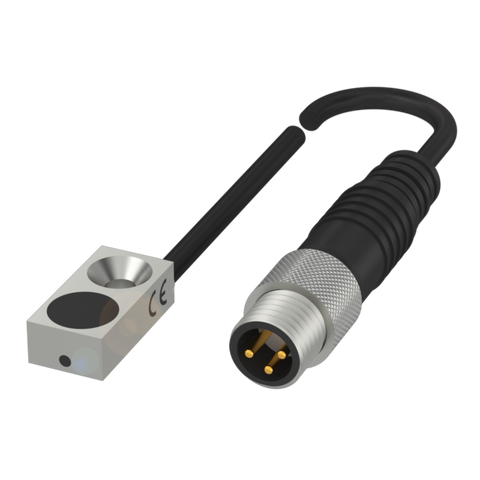

Balluff BES R04MC-PSC20B-EP00,3-GS49-106 Inductive sensor, PNP, NO Balluff
Balluff BES R04MC-PSC20B-EP00,3-GS49-106 Inductive sensor, PNP, NO Balluff
Balluff BES R04MC-PSC20B-EP00,3-GS49-106 Inductive sensor, PNP, NO

Balluff BES R04MC-PSC20B-EP00,3-GS49-106 Inductive sensor, PNP, NO

Dimension 16 x 8 x 4.7 mm Style Housing 16x8x4.7 Installation for flush mounting Range 2 mm Switching output PNP Normally open (NO)
Vendor: Balluff
SKU: BES04FA
Availability: In stock
Product type: Field Sensing & Switching
Please hurry! Only 17 left in stock
Description
Description
x
Dimension
16 x 8 x 4.7 mm
Style Housing
16x8x4.7
Installation
for flush mounting
Range
2 mm
Switching output
PNP Normally open (NO)
Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2
Material: Housing / GripBrass / Nickel-free coated
Material: Jacket / Cover NutPUR
Material: Sensing Surface / ContactsCeramic
Part Width (mm)8mm
Part Length (mm)16mm
Part Height (mm)4.7mm
Cable Diameter (mm)2.4mm
Connection TypeM8x1 / Male / 3-pin
Rated Operating Distance (mm)2mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)5000 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Rated Voltage24 VDC
Mounting TypeFlush mounting
Documents
Documents
x
Download Datasheet
