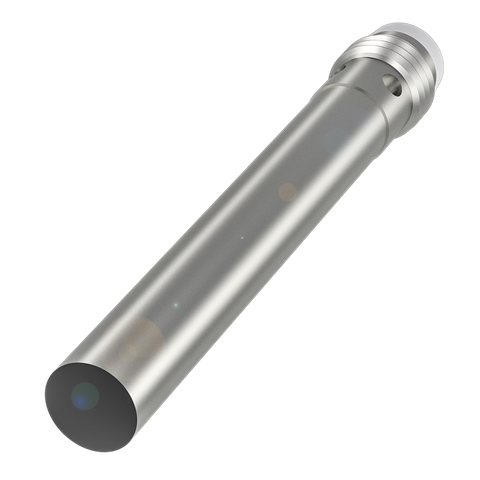

BES01KJ (BES 516-371-S49-C)

Product Overview

Inductive proximity switches and proximity sensors

Product Details

• Dimension: Ø 6.5 x 55 mm
• Style Housing: D6.5
• Installation: for flush mounting
• Range: 1.5 mm
• Switching output: PNP normally open (NO)
• Switching frequency: 5000 Hz
• Housing material: Stainless steel
• Material sensing surface: PBT
• Connection: Connector, M8x1-Male, 3-pin
• Operating voltage Ub: 10...30 VDC
• Ambient temperature: -40...85 °C
• IP rating: IP68
• Approval/Conformity: CE, cULus, WEEE

Downloads

• Datasheet

Classifications

• ECLASS 10.1: 27-27-01-01
• ECLASS 11.0: 27-27-01-01
• ECLASS 12.0: 27-27-40-01
• ECLASS 13.0: 27-27-40-01
• ECLASS 14.0: 27-27-40-01
• ETIM 4.0: EC002714
• UNSPSC 11: 41111926
