Description

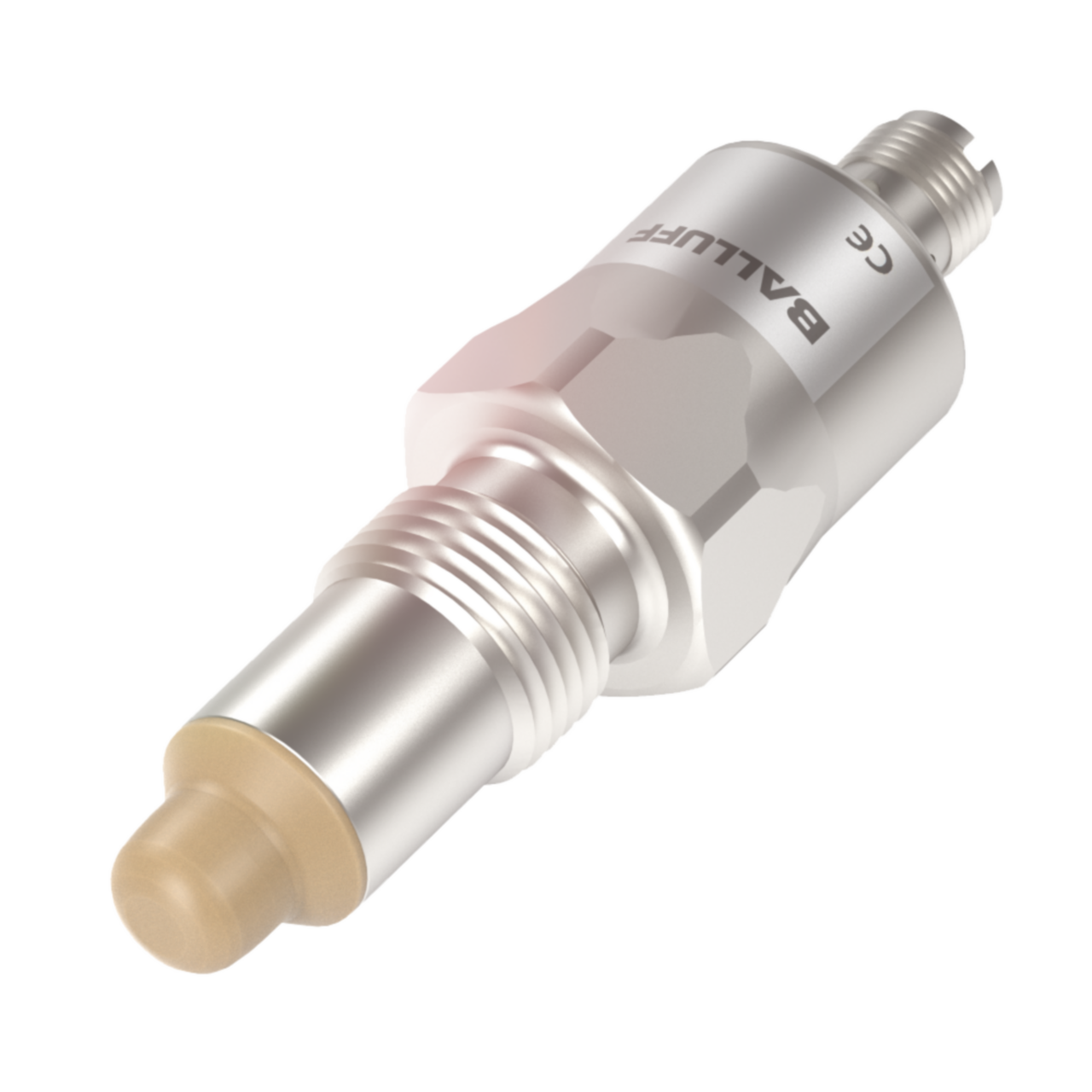

xThe BCS S04K501-PICFNG-S04G-T50 is a capacitive level sensor housed in stainless steel with a PEEK sensing surface, suitable for detecting media levels in demanding process environments. It provides a PNP normally open switching output with IO-Link 1.1 communication, operating from an 18-30 VDC supply, and connects via an M12x1 4-pin A-coded connector. With an IP68 rating (IP69K at the connector exit) and non-flush mounting, it is suited to industrial vessels and tanks where wash-down or ingress protection is required.
Key specifications
- IP rating: IP68, IP69K at connector exit
- Operating voltage: 18 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 4-pin / A-coded
- Output: PNP normally open (NO)
- Mounting: Non-flush mounting
Specifications
x| IP Rating | IP68, IP69K at connector exit |
| Compliance/Certifications | CE UKCA WEEE cULus / IEC 60947-5-2 |
| Material: Housing / Grip | Stainless steel |
| Material: Jacket / Cover Nut | Stainless steel |
| Material: Sensing Surface / Contacts | PEEK |
| Part Length (mm) | 96mm |
| Part Diameter (mm) | 30mm |
| Connection Type | M12x1 / Male / 4-pin / A-coded |
| Tightening Torque | 20 - 25 Nm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 5 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 18 - 30 VDC |
| Rated Voltage | 24 V |
| Interface | IO-Link 1.1 |
| Mounting Type | Non-flush mounting |
| Rated Operating Current | 50 mA |
