Description

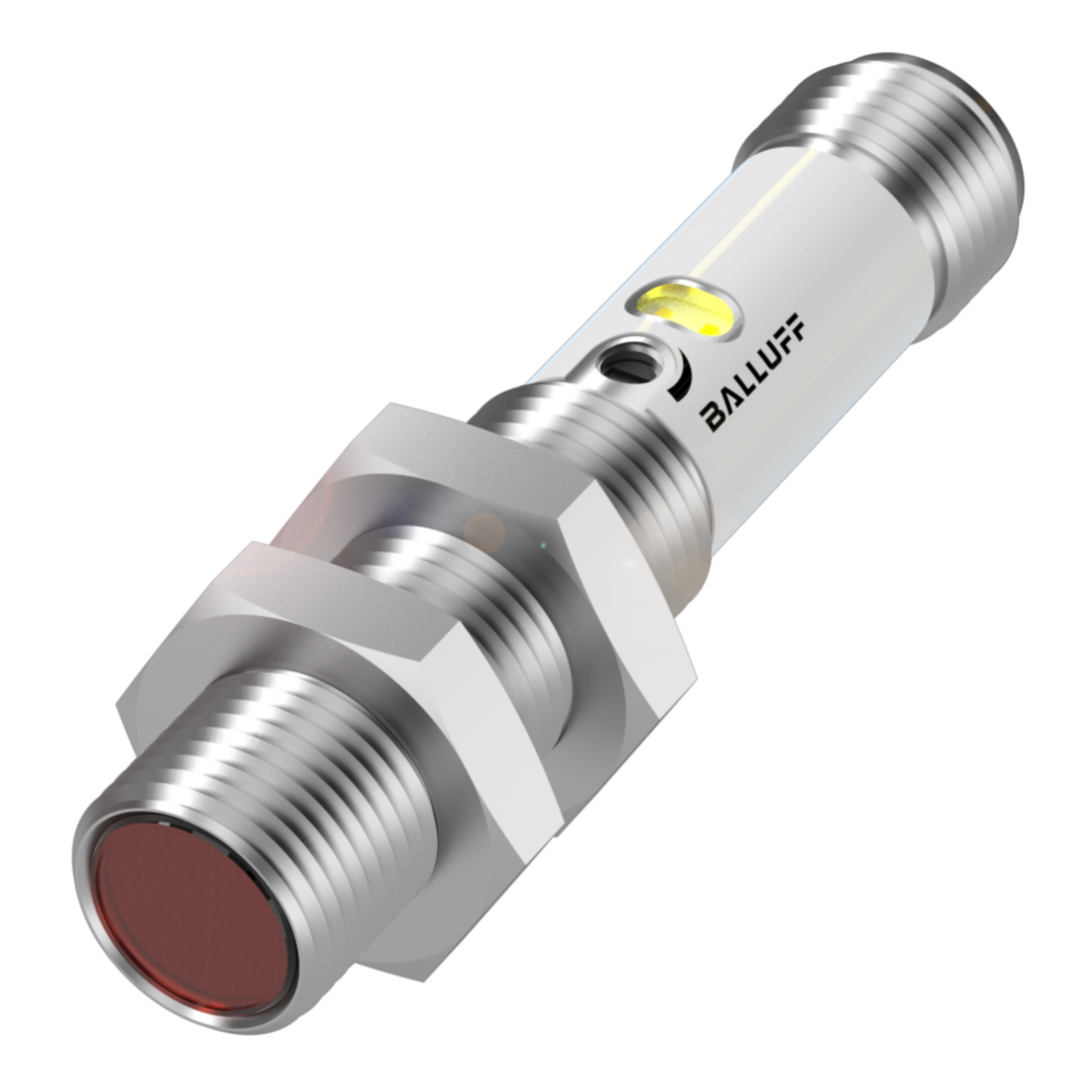

xThis through-beam photoelectric sensor with a cylindrical housing provides precise object detection over a range of up to 8 meters. It is equipped with a potentiometer for sensitivity adjustment and has IP67 protection for demanding environments.
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Brass / Nickel-plated |
| Material: Sensing Surface / Contacts | PMMA |
| Part Length (mm) | 60mm |
| Part Diameter (mm) | 12mm |
| Connection Type | M12x1 / Male / 4-pin |
| Tightening Torque | 15 Nm |
| Rated Operating Distance (mm) | 8000mm |
| Switching Output | PNP normally open (NO) Pin 4 |
| Switching Frequency (Hz) | 1000 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Nut M12x1 |
| Rated Operating Current | 100 mA |
