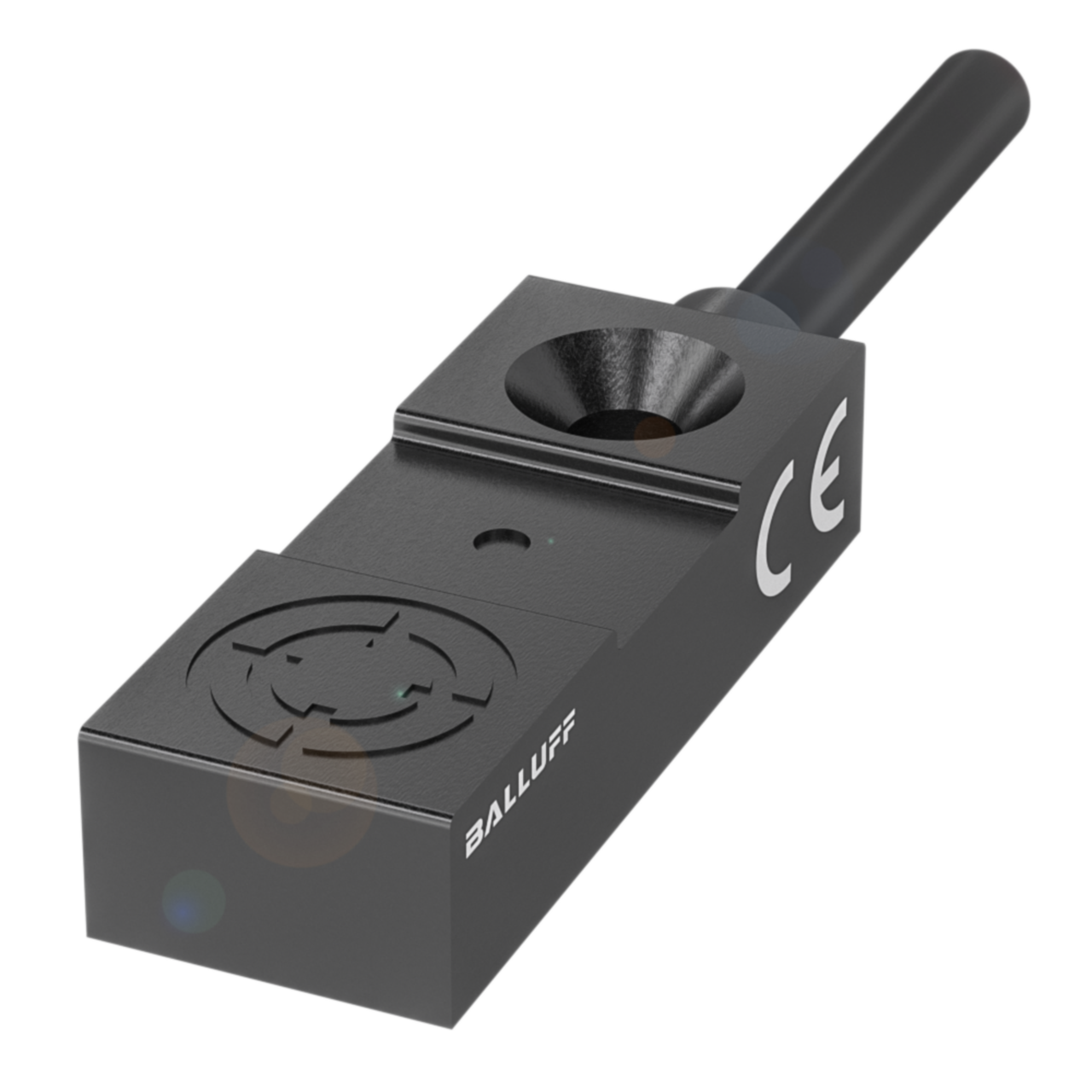

Balluff BES R03KC-PSC30B-EP02 Inductive sensors, PNP, NO
Balluff BES R03KC-PSC30B-EP02 Inductive sensors, PNP, NO

Balluff BES R03KC-PSC30B-EP02 Inductive sensors, PNP, NO Part number BES01WR

The Balluff BES R03KC-PSC30B-EP02 is an inductive sensors. It operates from 10 - 30 VDC. The housing is rated IP67. Approvals: CE, UKCA, cULus, WEEE.Key specifications IP rating: IP67 Operating voltage: 10 - 30 VDC Rated voltage: 24 V Output: PNP normally open (NO) Mounting: Flush mounting
Vendor: Balluff
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

The Balluff BES R03KC-PSC30B-EP02 is an inductive sensors. It operates from 10 - 30 VDC. The housing is rated IP67. Approvals: CE, UKCA, cULus, WEEE.

Key specifications

  • IP rating: IP67
  • Operating voltage: 10 - 30 VDC
  • Rated voltage: 24 V
  • Output: PNP normally open (NO)
  • Mounting: Flush mounting
Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2
Material: Housing / GripGF30 / PA 6
Material: Jacket / Cover NutTPU
Material: Sensing Surface / ContactsGF30 / PA 6
Part Depth (mm)10mm
Part Width (mm)30mm
Cable Length (mm)2 000mm
Part Height (mm)6mm
Cable Diameter (mm)3mm
Connection StyleCable, 2.00 m, TPU
Rated Operating Distance (mm)3mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)3000 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
Mounting TypeFlush mounting
Rated Operating Current100 mA
