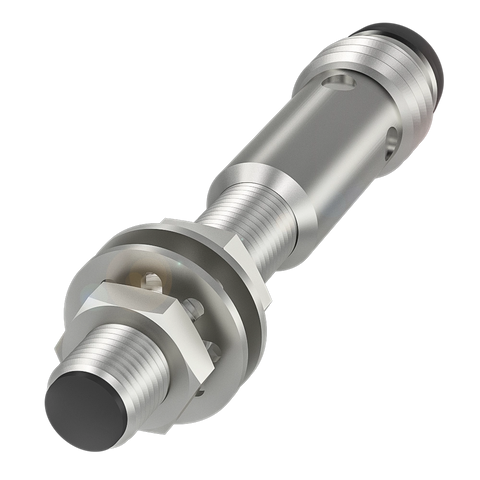

Balluff Inductive standard sensor, NPN, NO, M5, flush, M8 3-pin Part number BES00HP

This inductive sensor detects metallic targets at a sensing range of 1.5 mm and provides an NPN normally open output with a switching frequency of 5000 Hz. Its M5x0.5 stainless steel housing is designed for flush mounting, making it suitable for applications with limited installation space, while the M8x1 3-pin connector allows straightforward connection into control panels or machine wiring. Rated IP67 and operating across -25...70 °C, it is suited to industrial environments requiring reliable presence detection on automation equipment.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Connector, M8x1-Male, 3-pin
• Output: NPN normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: Ø 5 x 41 mm
