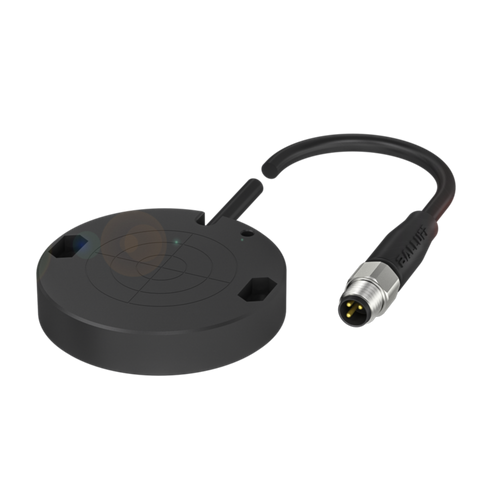

Balluff BCS D50OO02-YPC25C-EP03-GS49 Capacitive sensor Part number BCS018N

This capacitive sensor detects the presence of both conductive and non-conductive materials without physical contact, suitable for flush mounting in panels or machine structures. It offers a sensing range of 2 to 25 mm, with a programmable PNP/NPN NO/NC switching output for flexible integration into control circuits. The POM housing and IP67 rating support use in environments requiring resistance to dust and moisture, with operation across a temperature range of -30 to 60 °C. Connection is made via an integral 3 m PUR cable terminated with an M8x1 male connector.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Cable with connector, M8x1-Male, 3-pin, 3.00 m, PUR
• Output: PNP/NPN NO/NC programmable
• Operating temperature: -30...60 °C
• Dimensions: Ø 50 x 10 mm
