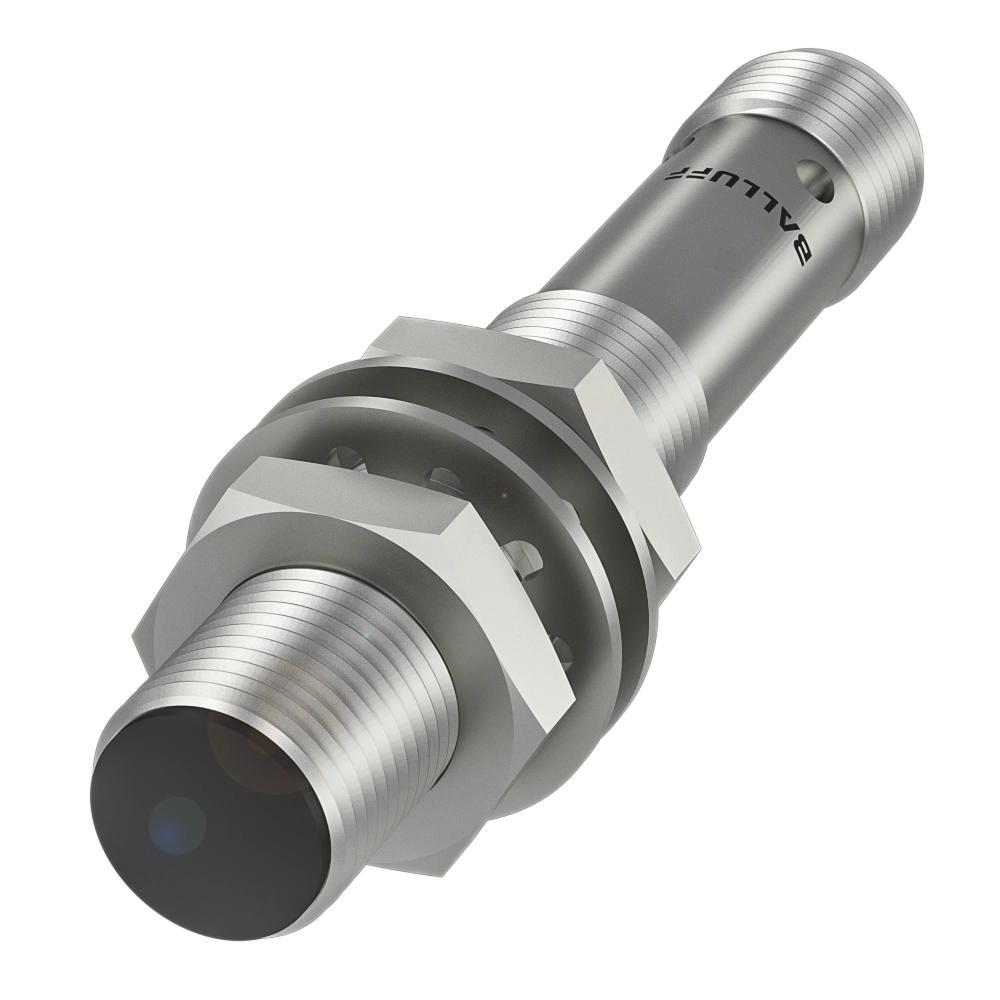

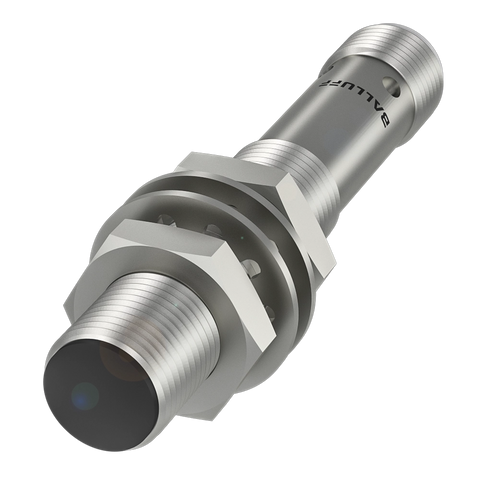

Balluff Inductive standard sensor, PNP, NO/NC, M12, flush, M12 4-pin Part number BES0161

This inductive proximity sensor detects metal targets at a rated operating distance of 2mm and provides a PNP output configurable as normally open or normally closed. Its flush-mount M12x1 stainless steel housing suits installation in industrial panels and machinery where the sensor face sits level with the mounting surface, and the M12 4-pin connector allows straightforward cable termination. With an IP68 rating and PBT sensing surface, it is suited to environments requiring resistance to dust and moisture ingress, operating from a 10-30 VDC supply.

Key specifications

• IP rating: IP68, according to BWN Pr 20
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open/normally closed (NO/NC)
• Mounting: Flush mounting
