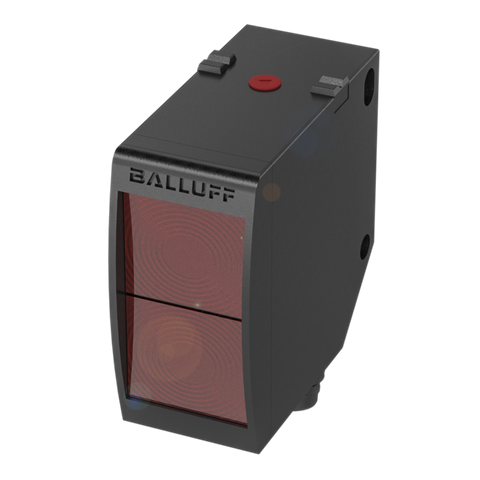

Balluff BOS 23K-XT-LS11-S4 Through-beam sensor Part number BOS016K

This through-beam sensor operates as part of a paired emitter-receiver arrangement, detecting objects that interrupt the beam across a sensing range of up to 30 m. The housing is constructed from PCABS with a PMMA sensing element, and connection to the control system is made via an M12x1, 4-pin male connector. It operates on a 10...30 VDC supply, suitable for use in industrial automation panels and machine applications requiring long-range object detection.

Key specifications

• Operating voltage: 10...30 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Dimensions: 23 x 51 x 52.4 mm
• Material: PCABS
