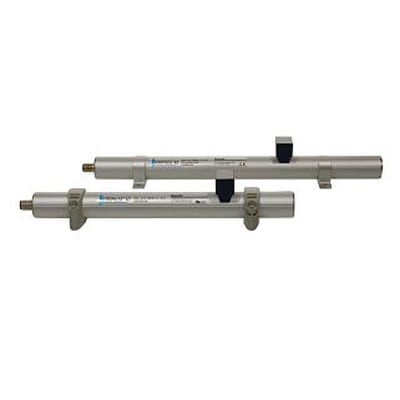

Balluff BTL6-A110-M0325-A1-S115 Magnetostrictive linear sensor

The BTL6-A110-M0325-A1-S115 is a magnetostrictive linear position sensor from Balluff's Profile series, housed in an aluminium enclosure with an IP67 rating for use in demanding industrial environments. It measures position over a 254 mm range using a single magnet and provides an analogue voltage output of 0-10 V or 10-0...

Vendor: Balluff

Availability: Out Of Stock

Product type: Field Sensing & Connectivity

Please hurry! Only 0 left in stock

Description
Specifications
Documents
Alternatives

Product Information

Name: Balluff BTL6-A110-M0325-A1-S115 Magnetostrictive linear sensor
Brand: Balluff
SKU: BTL002H

Balluff BTL002H, Linear Sensor

Part #: BTL002H

Model Code: BTL6-A110-M0254-A1-S115

Manufacturer: Balluff, Inc.

Manufacturer Part Number: BTL002H

Attribute Table

Style	Profile series
Housing material	Aluminum
Operating voltage Ub	20 - 28 VDC
IP rating per IEC 60529	IP67
Ambient temperature	0 to 70 °C
Approval/Conformity	CE, cULus
Measuring range	254 mm
Analog output	Analog, voltage, 0 - 10 V; Analog, voltage, 10 - 0 V
Non-linearity max.	±200 µm
Magnets, number max.	1
Resolution	≤ 10 µm
Repeat accuracy R	≤10 µm
Connection	M12x1, 8-pole
Fastening detail	Mounting clamps

Manufacturer Description

Linear position sensors with a profile design are contact-free and absolute measurement systems for the precise detection of one or more positions. They deliver convincing performance in harsh environments, like presses, injection molding machines or gantry robots. The magnets of the position encoder act on the measurement element through the wall of the profile.
