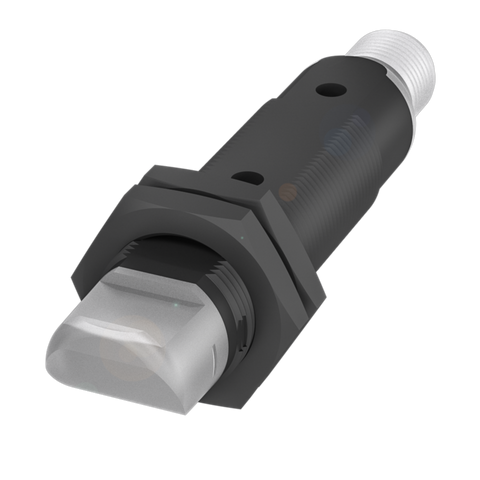

Balluff BLS 18KW-XX-1P-S4-L Through-beam sensor, Ø 18 x 14mm Part number BOS00EW

This through-beam sensor forms the emitter or receiver half of a through-beam pair, mounted in a Ø 18 x 14 mm PBT housing with a PMMA sensing element. It operates over a sensing range of 0 to 15 m on a 10 to 30 VDC supply, connecting via an M12x1, 4-pin male connector. Its compact cylindrical body suits installation in automation and machine-building applications where panel or frame space is limited.

Key specifications

• Operating voltage: 10...30 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Dimensions: Ø 18 x 14 mm
• Material: PBT
