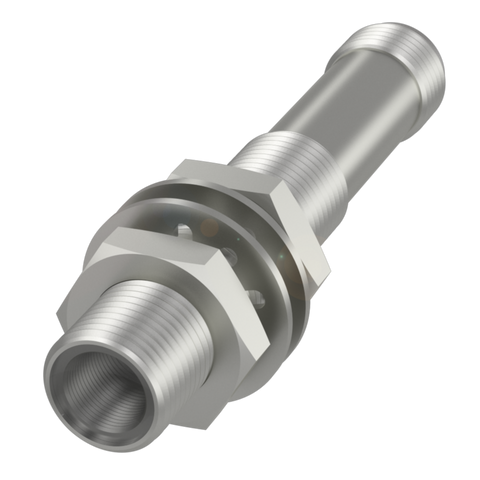

Balluff BOS 12M-XT-LS11-S4 Through-beam sensor, Ø 12 x 70 Part number BOS00WL

This through-beam sensor forms part of a photoelectric pair, with the emitter and receiver mounted opposite one another so that an object is detected when it interrupts the beam. The BOS 12M-XT-LS11-S4 has a cylindrical Ø 12 x 70 mm housing in nickel-plated brass with a glass sensing face, and detects across a range of 0 to 3 m. It operates on 10...30 VDC and connects via an M12x1, 4-pin male connector, making it suitable for panel or machine mounting where a compact metal-bodied sensor is required.

Key specifications

• Operating voltage: 10...30 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Dimensions: Ø 12 x 70 mm
• Material: Brass, nickel-plated
