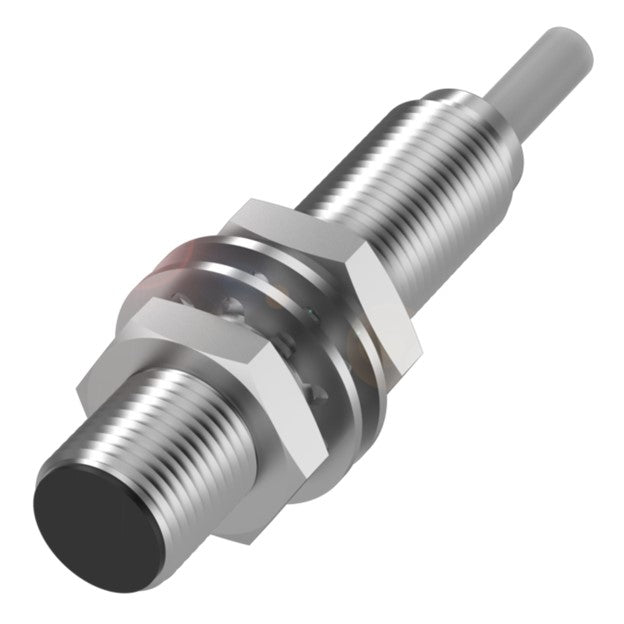

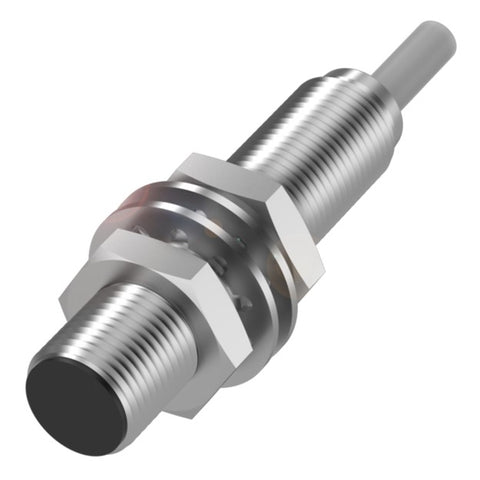

Balluff BES M12MI-PSC40B-BV03 Inductive sensor, PNP, NO Part number BES0001

The BES M12MI-PSC40B-BV03 is an inductive proximity sensor with a PNP normally open output, housed in a brass M12 body with a nickel-free coating and PBT sensing face. It detects metallic targets at a rated operating distance of 4 mm and is designed for flush mounting, with an IP68 rating suiting damp or washdown environments. Operating from 10 to 30 VDC with a switching frequency of 2500 Hz, it connects via a 3 m PVC cable and is typically used in industrial automation panels and machine builds where compact, reliable position sensing is required.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Output: PNP normally open (NO)
• Mounting: Flush mounting
