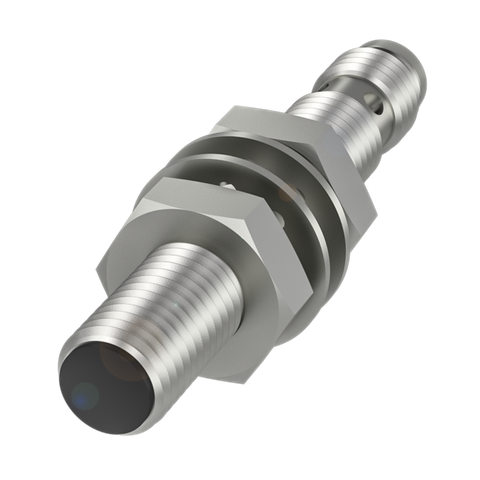

Balluff BES M08EG-PSC15B-S49G Inductive sensor, PNP, NO Part number BES01P7

This inductive sensor detects the presence of metal targets without contact, switching a PNP normally open output at a sensing range of 1.5 mm. Housed in a stainless steel M8x1 body designed for flush mounting, it connects via an M8x1 three-pin male connector and operates from a 10...30 VDC supply. Its IP68 rating and -40...85 °C operating range make it suitable for harsh industrial environments such as machine bases, conveyors and panel-mounted automation equipment where compact, reliable position detection is required.

Key specifications

• IP rating: IP68
• Operating voltage: 10...30 VDC
• Connection: Connector, M8x1-Male, 3-pin
• Output: PNP normally open (NO)
• Operating temperature: -40...85 °C
• Dimensions: Ø 8 x 50 mm
