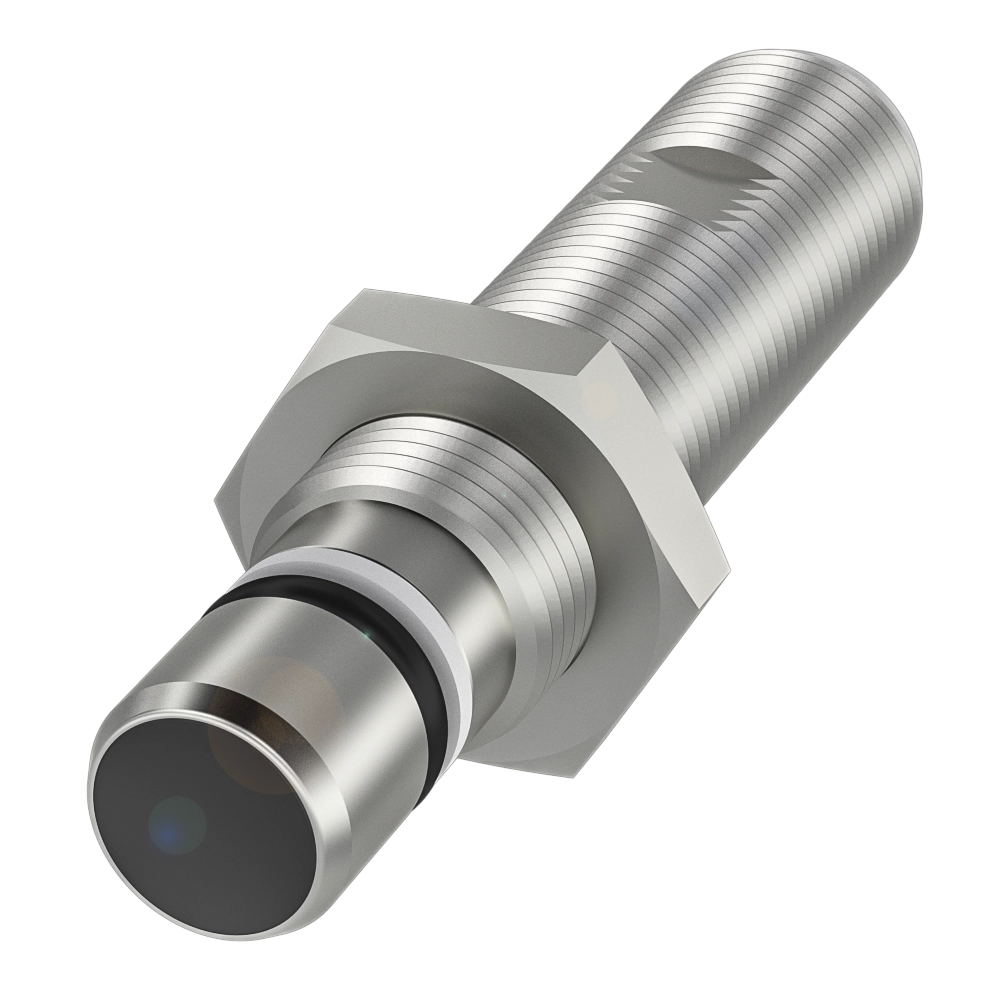

Balluff Pressure-rated inductive sensor, PNP, NO, M12, flush, M12 4-pin Part number BHS0033

This inductive sensor is designed for pressure-rated applications requiring flush mounting in an M12, 12mm diameter housing. Constructed from stainless steel with a PTFE support ring, it provides a PNP normally open output with a rated operating distance of 1.5mm and an IP68 ingress protection rating. The M12x1, 4-pin A-coded connector allows straightforward integration into automation panels and machinery where compact, sealed proximity sensing is required.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Flush mounting
