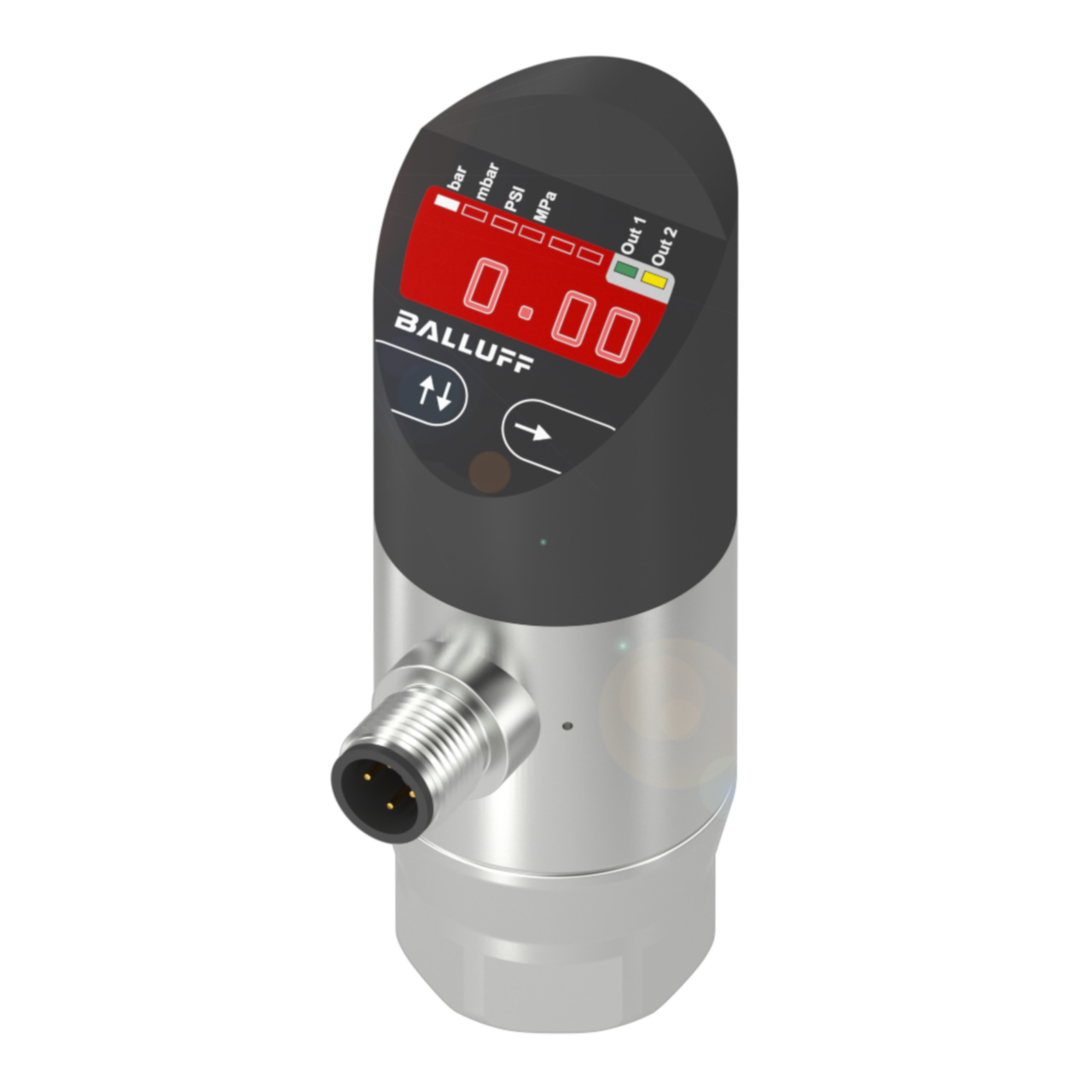

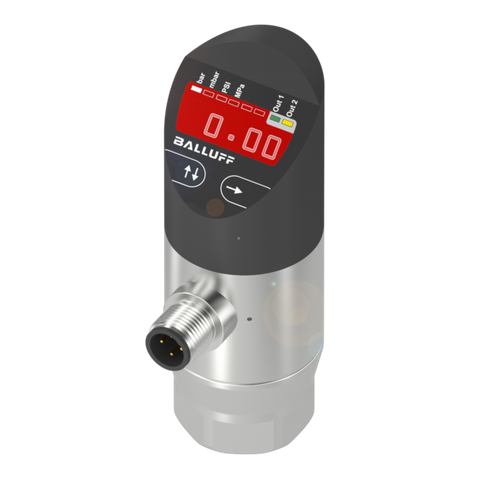

Balluff BSP B010-EV002-A02S1B-S4 Pressure sensors with display Part number BSP0095

This pressure sensor measures in the range of 0 to 10 bar and provides a PNP normally open/normally closed switching output with an integrated display for direct readout at the point of measurement. The housing is constructed in PAPA 6.6 with an M12x1 4-pin male connector, IP67 rated and suited to an operating voltage of 18 to 36 VDC across an ambient temperature range of -25 to 85 °C. It is typically applied in industrial automation systems where pressure monitoring is required within panels or on machinery, including in environments with dust or moisture exposure.

Key specifications

• IP rating: IP67
• Operating voltage: 18...36 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Output: PNP normally open/normally closed (NO/NC)
• Operating temperature: -25...85 °C
• Material: PAPA 6.6
