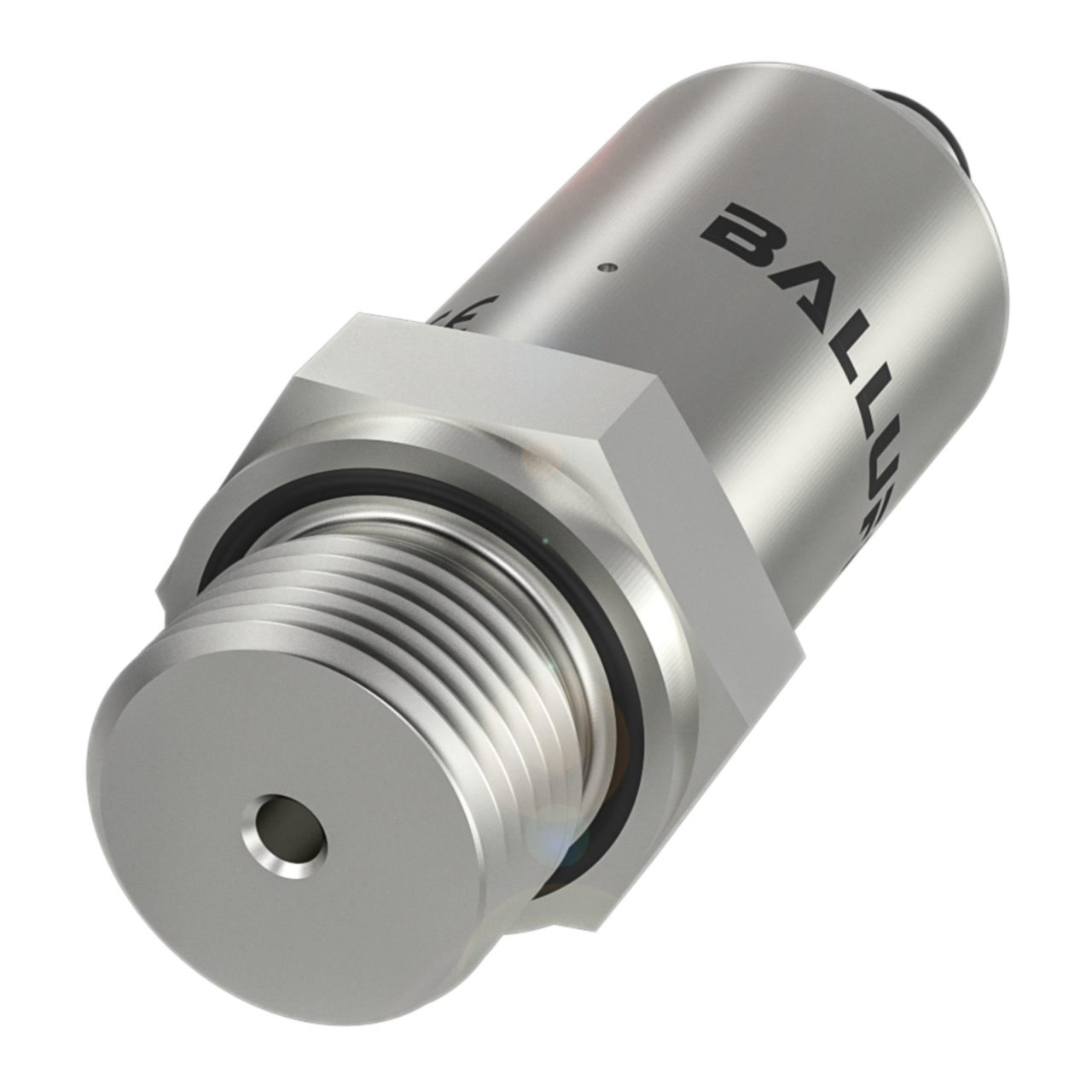

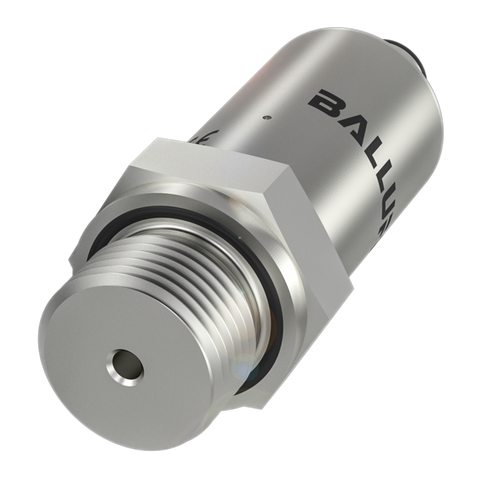

Balluff BSP B002-HV004-A06A1A-S4 Pressure sensor w/o display Balluff
Balluff BSP B002-HV004-A06A1A-S4 Pressure sensor w/o display Balluff

Balluff BSP B002-HV004-A06A1A-S4 Pressure sensor w/o display Part number BSP00J4

This pressure sensor measures within a range of 0 to 2 bar and operates without an integrated display. The housing is constructed from 1.4301 stainless steel, with connection made via an M12x1, 4-pin male connector, suitable for use with an 8 to 32 VDC supply. Rated IP67 and specified for...
Vendor: Balluff
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This pressure sensor measures within a range of 0 to 2 bar and operates without an integrated display. The housing is constructed from 1.4301 stainless steel, with connection made via an M12x1, 4-pin male connector, suitable for use with an 8 to 32 VDC supply. Rated IP67 and specified for ambient temperatures between -25 and 85°C, it is suited to industrial automation applications requiring pressure monitoring in panels or machinery.

Key specifications

  • IP rating: IP67
  • Operating voltage: 8...32 VDC
  • Connection: Connector, M12x1-Male, 4-pin
  • Operating temperature: -25...85 °C
  • Material: 1.4301 stainless steel
Specifications
Specifications
x
range0...2 bar
housing_material1.4301 stainless steel
connectionConnector, M12x1-Male, 4-pin
operating_voltage8...32 VDC
ambient_temperature-25...85 °C
ip_ratingIP67
approval_conformityCEUKCAcULusWEEE
Documents
Documents
x
Download Datasheet
