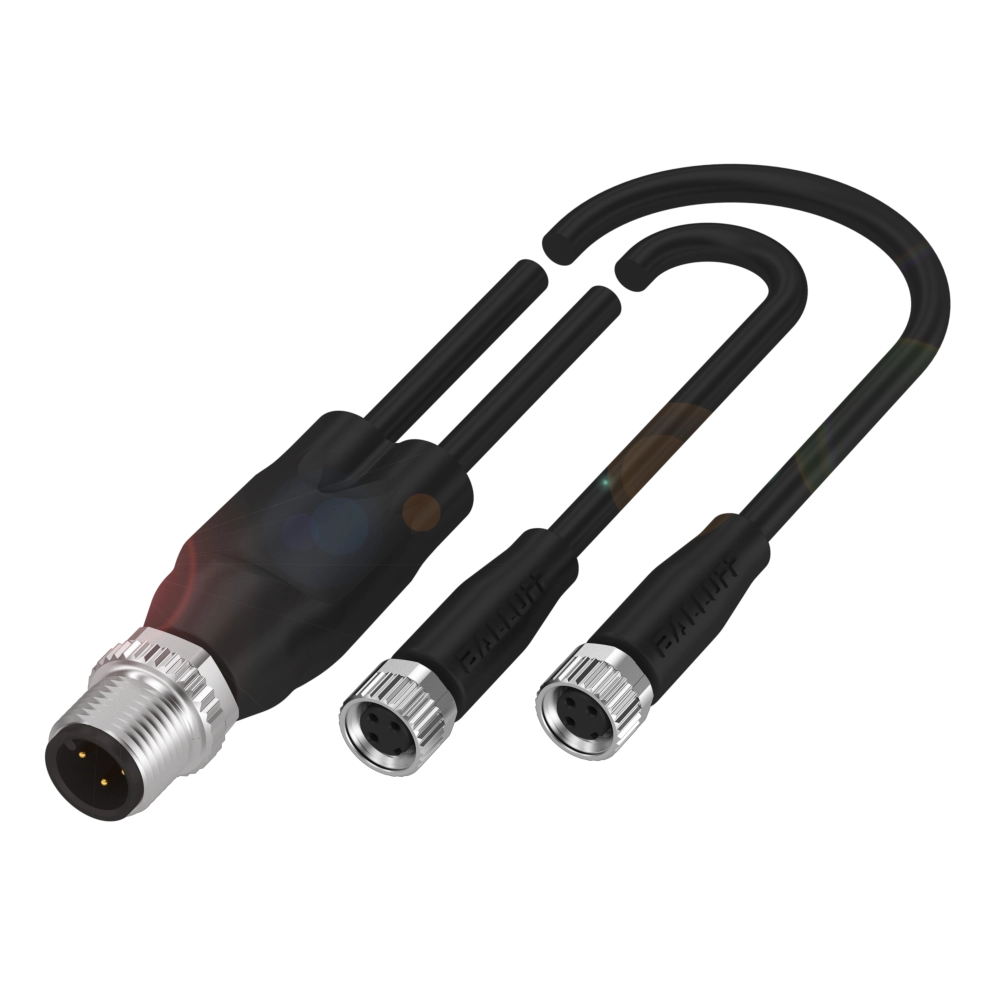

Balluff BCC M414-M313-M313-U2026-006 Y-splitter, straight, 4A Part number BCC0AFW

This Y-splitter allows a single M12 field connection point to feed two separate M12 device drops, reducing the number of ports required on a sensor or control cabinet. It features an M12x1 male, straight, 4-pin, A-coded connection and is rated for operating voltages up to 60 VDC / 60 VAC. With IP67, IP68 and IP69K protection, it is suited to field-level wiring in industrial automation environments where sensors and actuators need to be consolidated onto a shared connection point.

Key specifications

• IP rating: IP67, IP68, IP69K/IP67/IP67
• Operating voltage: 60 VDC / 60 VAC
• Connection: M12x1-Male, straight, 4-pin, A-coded
