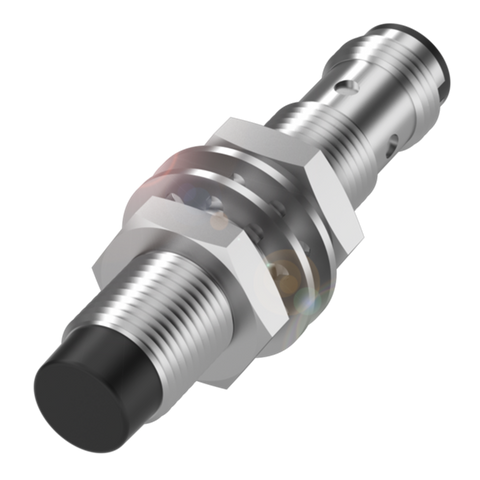

Balluff BES M12MG-NSC80F-S04G Inductive sensor, NPN, NO Part number BES004F

This is an M12 inductive proximity sensor with an NPN normally open switching output, designed for non-flush mounting and offering a sensing range of 8 mm. It operates from 10 to 30 VDC, switches at up to 1000 Hz, and connects via a 4-pin M12x1 male connector. The nickel-free coated brass housing and IP68 rating suit use in industrial environments with washdown or contaminant exposure, across an ambient temperature range of -25 to 70 °C.

Key specifications

• IP rating: IP68
• Operating voltage: 10...30 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Output: NPN normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: Ø 12 x 60 mm
