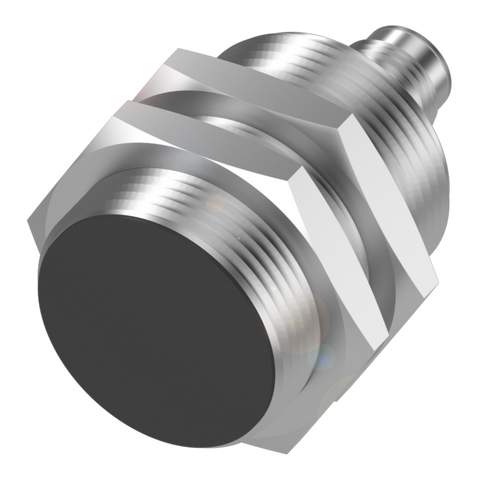

Balluff BES M30MF-GSC15B-S04G-U Inductive sensor, flush, NO, M30 Part number BES03KL

This is an inductive proximity sensor in an M30x1.5 threaded housing, designed for flush mounting with a sensing range of 15 mm. It provides a polarized normally open (NO) switching output via an M12x1, 4-pin male connector, and operates from 10 to 36 VDC. The brass, PTFE-coated housing and IP67 rating suit installation in industrial environments where contact-free detection of metal targets is required on machinery or panel-mounted equipment.

Key specifications

• IP rating: IP67
• Operating voltage: 10...36 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Output: polarized normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: Ø 30 x 51 mm
