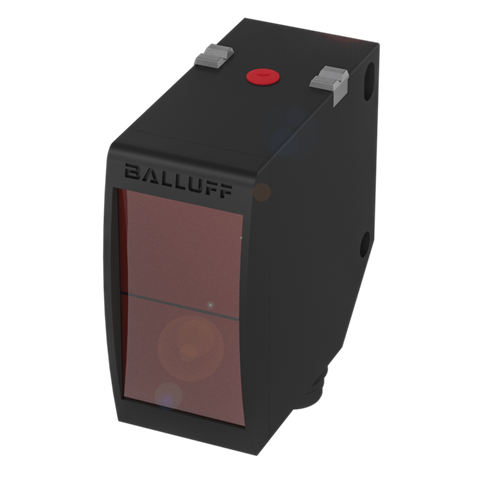

Balluff BOS 23K-PU-LE10-S4 Through-beam sensor, PNP, NO/NC Part number BOS016L

This through-beam sensor is designed for detecting objects over long distances, with a sensing range of up to 30 m, making it suitable for applications requiring detection across wide gaps or large machine sections. It provides a PNP output with NO/NC switching configuration and connects via an M12x1, 4-pin male connector, operating on a supply of 10 to 30 VDC. The PCABS housing and PMMA sensing components suit installation in industrial field sensing applications where a compact through-beam design is required.

Key specifications

• Operating voltage: 10...30 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Dimensions: 23 x 51 x 52.4 mm
• Material: PCABS
