Description

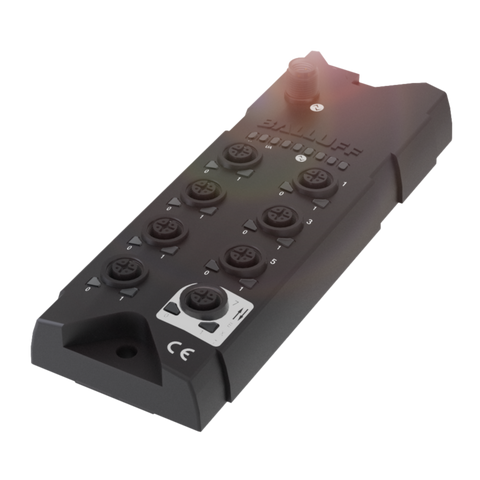

xThis IO-Link hub provides a sensor/actuator connection point within an IO-Link network, using an M12x1-male, 4-pin, A-coded connector for network attachment. The plastic housing is rated IP67 when properly threaded in, suiting installation directly on machines and panels in industrial environments. It operates from an 18...30.2 VDC supply and is rated for ambient temperatures between -5 and 70°C, making it appropriate for field-level mounting close to sensors and actuators.
Key specifications
- IP rating: IP67, when threaded in
- Operating voltage: 18...30.2 VDC
- Connection: M12x1-Male, 4-pin, A-coded
- Operating temperature: -5...70 °C
- Dimensions: 68 x 36.8 x 183.5 mm
- Material: Plastic
Specifications
x| dimension | 68 x 36.8 x 183.5 mm |
| housing_material | Plastic |
| connection | M12x1-Male, 4-pin, A-coded |
| operating_voltage | 18...30.2 VDC |
| ambient_temperature | -5...70 °C |
| ip_rating | IP67, when threaded in |
Documents
