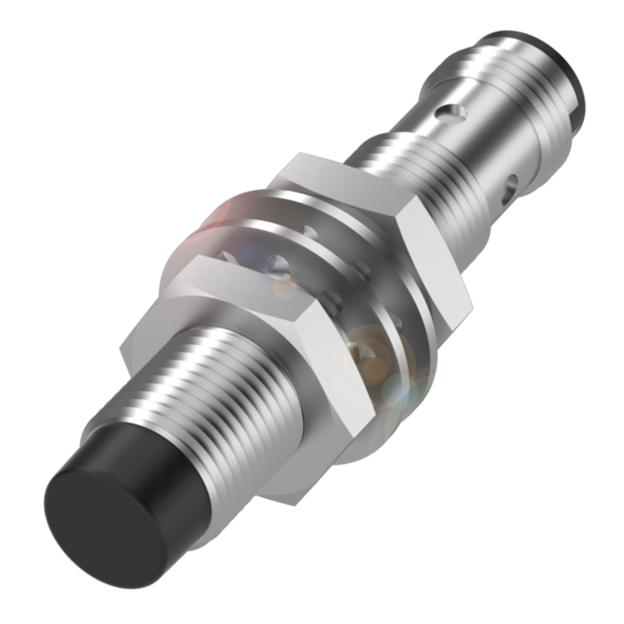

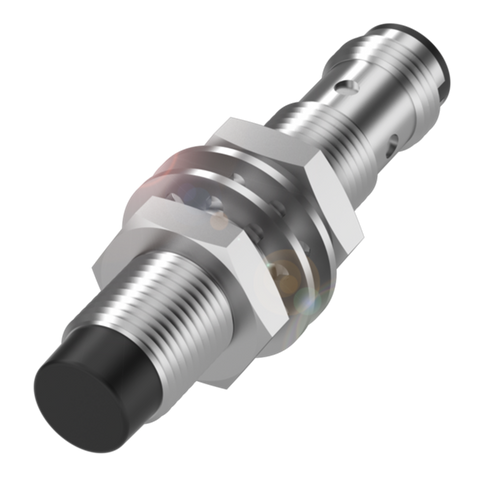

Balluff BES M12MG-POC80F-S04G Inductive sensor, PNP, NC Part number BES004K

This M12x1 inductive sensor detects metallic targets without contact, switching its PNP normally-closed output when an object enters its 8 mm sensing range. The non-flush housing, in nickel-free coated brass with a PBT sensing face, suits installation where clearance around the sensing zone is available. Rated IP68 and operating across -25 to 70°C, it connects via a 3-pin M12x1 male connector and runs on 10-30 VDC, making it suitable for position and object detection in industrial automation panels and machinery.

Key specifications

• IP rating: IP68
• Operating voltage: 10...30 VDC
• Connection: Connector, M12x1-Male, 3-pin
• Output: PNP normally closed (NC)
• Operating temperature: -25...70 °C
• Dimensions: Ø 12 x 60 mm
