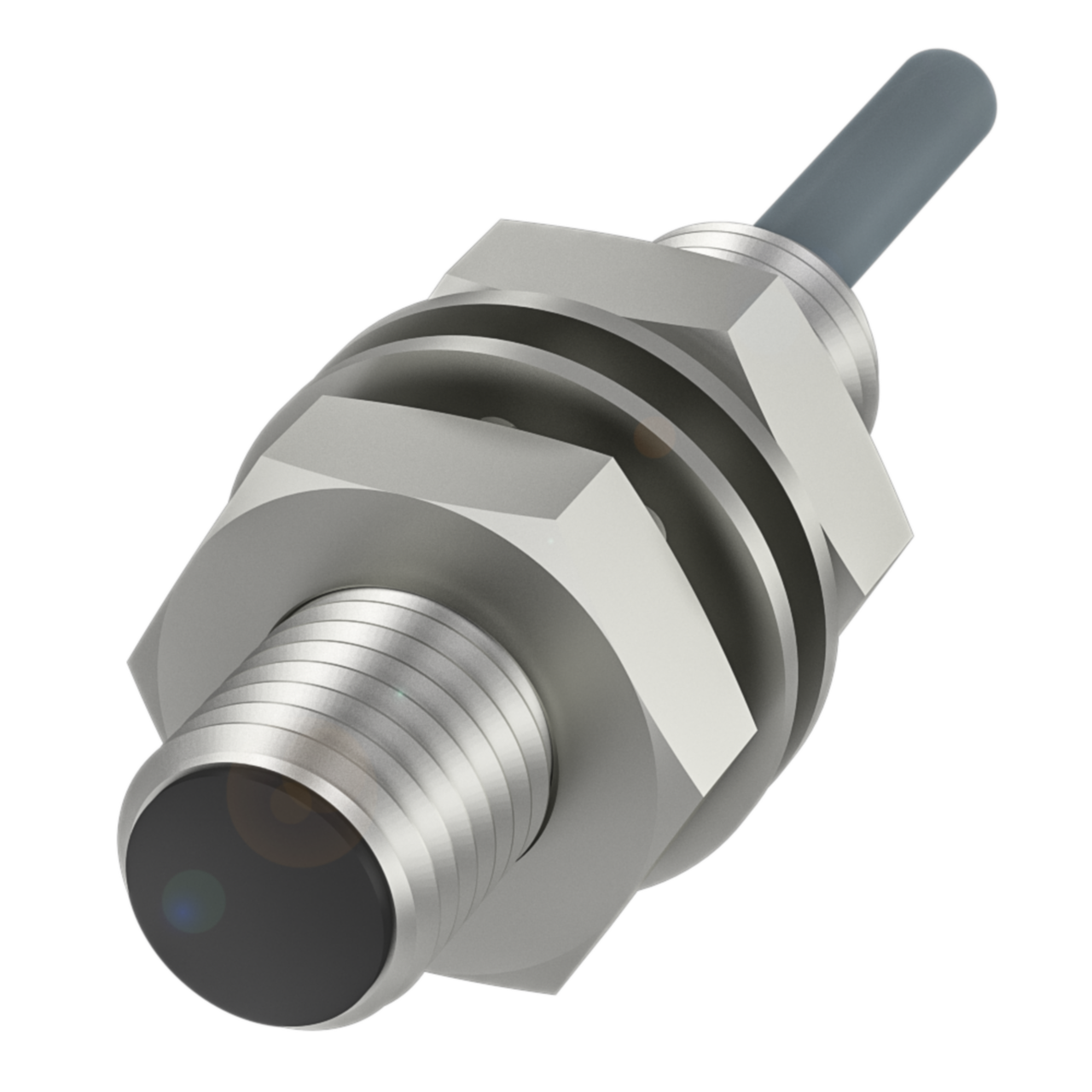

Balluff Inductive standard sensor, PNP, NO, M8, flush, 2m PVC Part number BES00NR

This inductive sensor detects metal targets at a rated operating distance of 2mm and provides a PNP normally open output for switching. The M8 housing is designed for flush mounting, with a stainless steel body and PVC cover nut, and it is rated IP68 for use in wet or contaminated environments. It operates from a 10–30 VDC supply with a 2m PVC cable connection, suiting compact panel or machine applications where space around the sensor face is limited.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Output: PNP normally open (NO)
• Mounting: Flush mounting
