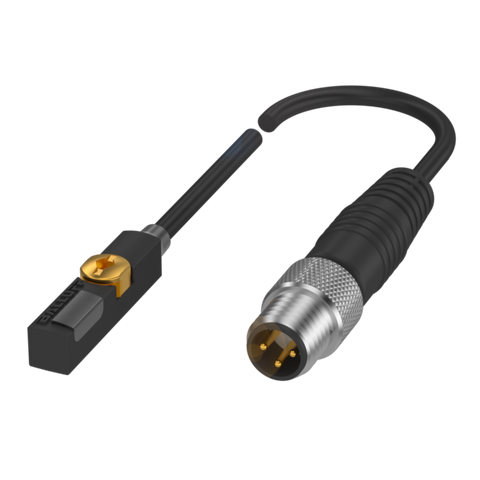

Balluff BMF 235K-PS-C-2A-SA2-S49-00,3 T-slot sensor, PNP, NO Part number BMF00C4

This is a magnetic T-slot sensor for detecting piston position within pneumatic cylinder slots, providing a PNP normally open output. The housing is rated IP67 and constructed from PA 12 with a PUR cable jacket, suited to industrial environments with an operating temperature range of -25°C to 85°C. It connects via an M8x1, 3-pin male connector and operates at 24V with a rated current of 200mA.

Key specifications

• IP rating: IP67
• Rated voltage: 24 V
• Connection: Male / 3 pin
