Description

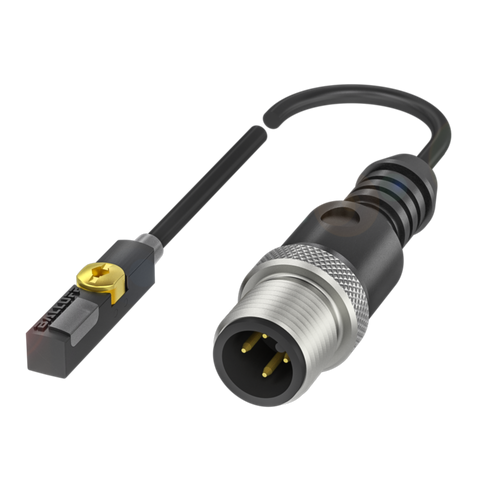

xThis is a PNP magnetic field sensor used for position sensing on pneumatic cylinders fitted with a magnetic piston, typically installed in cylinder mounting slots or grooves. It provides a normally open switching output and operates from 10 to 30 VDC, connecting via an M12x1, 4-pin, A-coded male connector with a 300mm cable. The housing is rated IP67 and constructed from PA 12 with a PUR cable jacket, suiting installation in industrial automation environments where compact dimensions and reliable position detection are required.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Connection: M12x1 / Male / 4-pin / A-coded
- Output: PNP normally open (NO)
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | IEC 60947-5-2 / CE UKCA cULus WEEE |
| Material: Housing / Grip | PA 12 |
| Material: Jacket / Cover Nut | PUR |
| Material: Sensing Surface / Contacts | PU |
| Part Width (mm) | 5mm |
| Part Length (mm) | 23.5mm |
| Cable Length (mm) | 300mm |
| Part Height (mm) | 5.5mm |
| Cable Diameter (mm) | 2.5mm |
| Connection Type | M12x1 / Male / 4-pin / A-coded |
| Tightening Torque | 0,4 Nm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 3000Hz |
| Operating Voltage | 10 - 30 VDC |
