Description

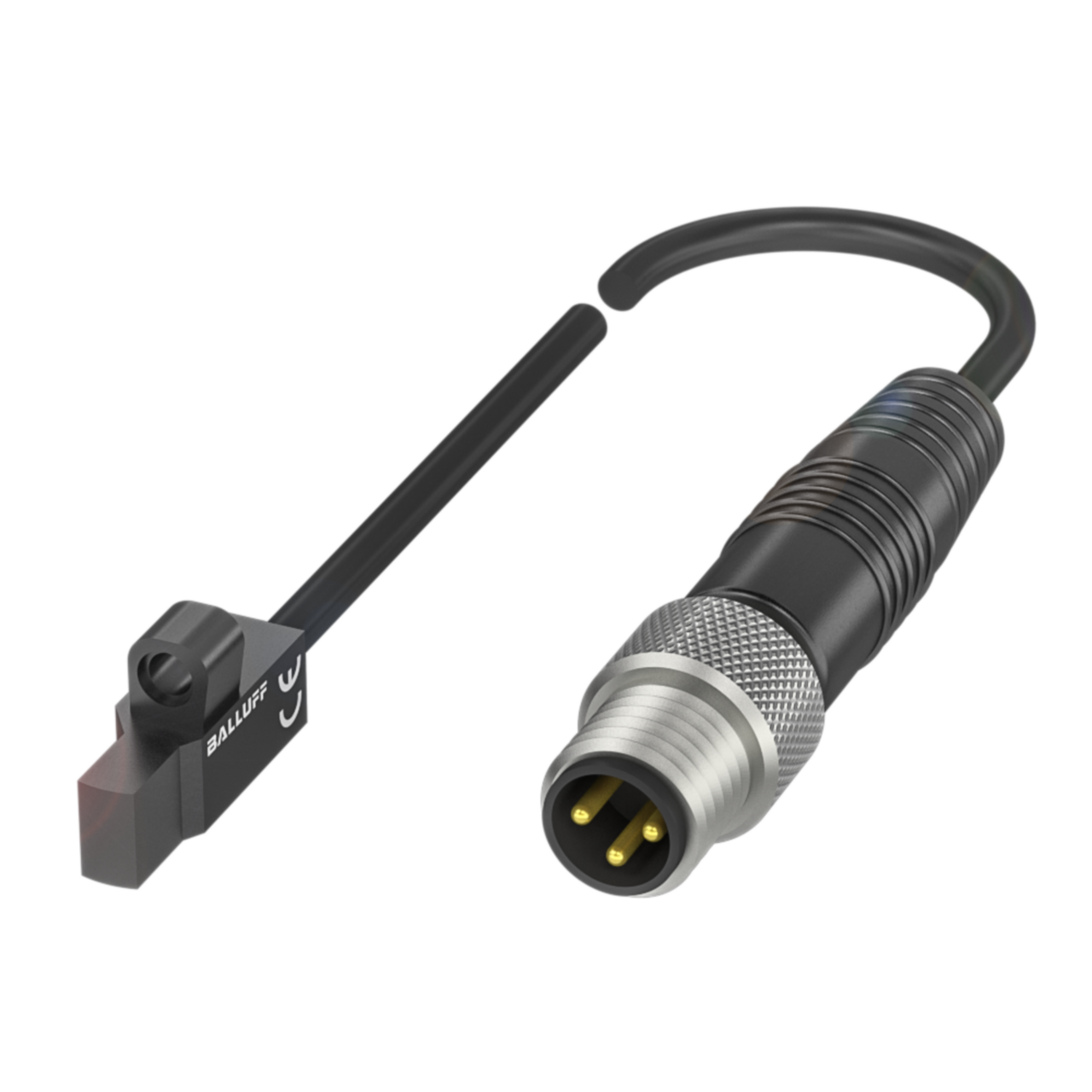

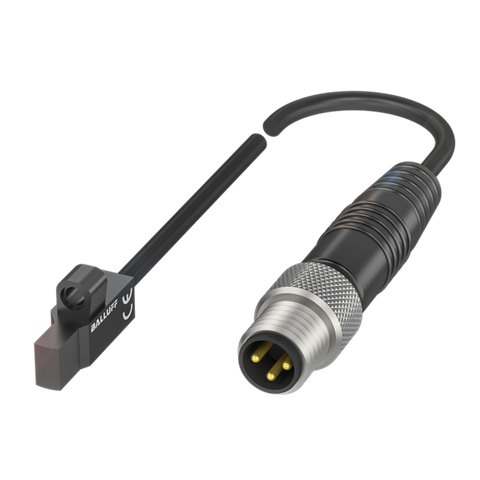

xThis magnetic field sensor detects the position of a magnetic piston within pneumatic cylinders, providing a PNP normally open switching output. The compact PBT housing measures 9 x 4.8 x 16 mm and connects via an M8x1, 3-pin male connector, suiting installation directly on cylinder mounting slots in automation equipment. Operating from 10...30 VDC with a switching frequency of 30000 Hz, it is rated IP67 and suitable for ambient temperatures from -25 to 85 °C.
Key specifications
- IP rating: IP67
- Operating voltage: 10...30 VDC
- Connection: M8x1-Male, 3-pin
- Output: PNP normally open (NO)
- Operating temperature: -25...85 °C
- Dimensions: 9 x 4.8 x 16 mm
Specifications
x| dimension | 9 x 4.8 x 16 mm |
| switching_output | PNP normally open (NO) |
| switching_frequency | 30000 Hz |
| housing_material | PBT |
| connection | M8x1-Male, 3-pin |
| operating_voltage | 10...30 VDC |
| ambient_temperature | -25...85 °C |
| ip_rating | IP67 |
| approval_conformity | cULusCEUKCAWEEE |
