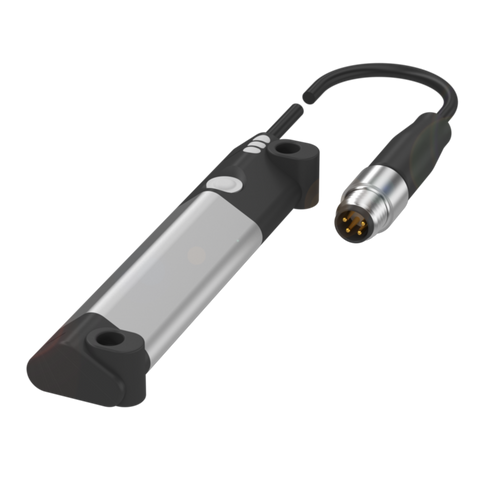

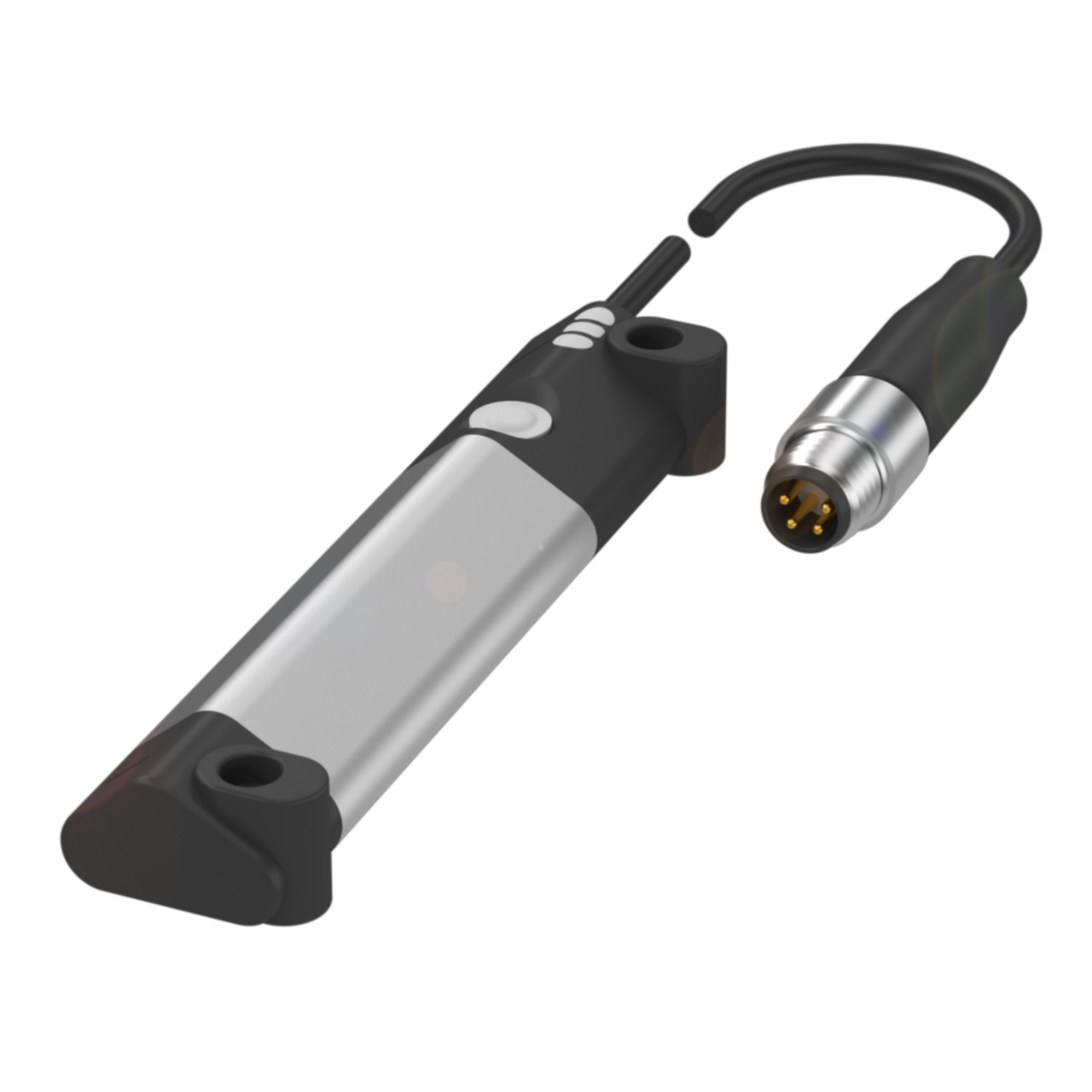

Balluff BMP 01-EL1PP21A-0064-00-P00,5-S75 Field positioning system Part number BMP0005

This is a magnetic field positioning sensor with a measuring range of 64 mm, housed in PA 12/aluminium with an IP67 rating for protection against dust and moisture. It operates from 15...30 VDC and is rated for ambient temperatures between -25 and 85 °C, connecting via an integral M8x1, 4-pin cable with connector. Its compact dimensions suit installation directly on cylinders or linear axes for position feedback in automation equipment and machine panels.

Key specifications

• IP rating: IP67
• Operating voltage: 15...30 VDC
• Connection: Cable with connector, M8x1-Male, 4-pin, 0.5 m, PUR
• Operating temperature: -25...85 °C
• Dimensions: 17.5 x 9.6 x 74 mm
• Material: PA 12Aluminium
