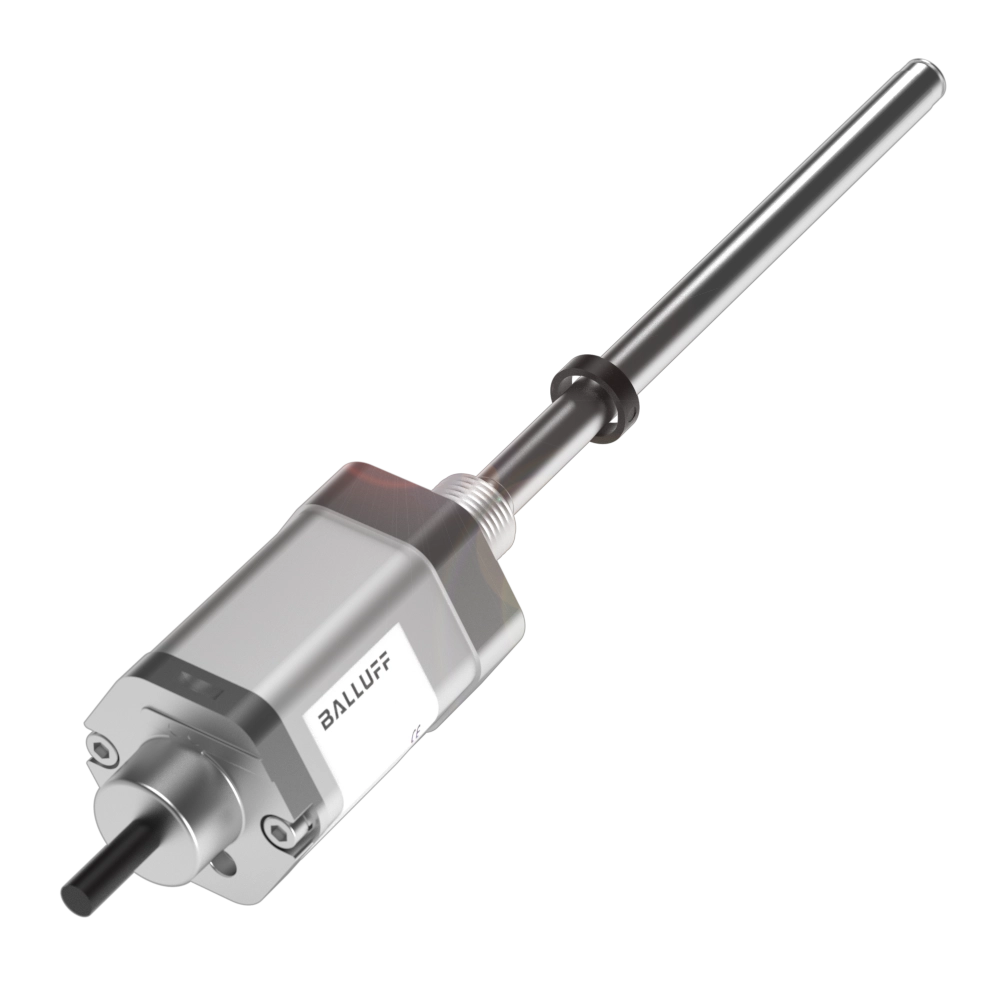

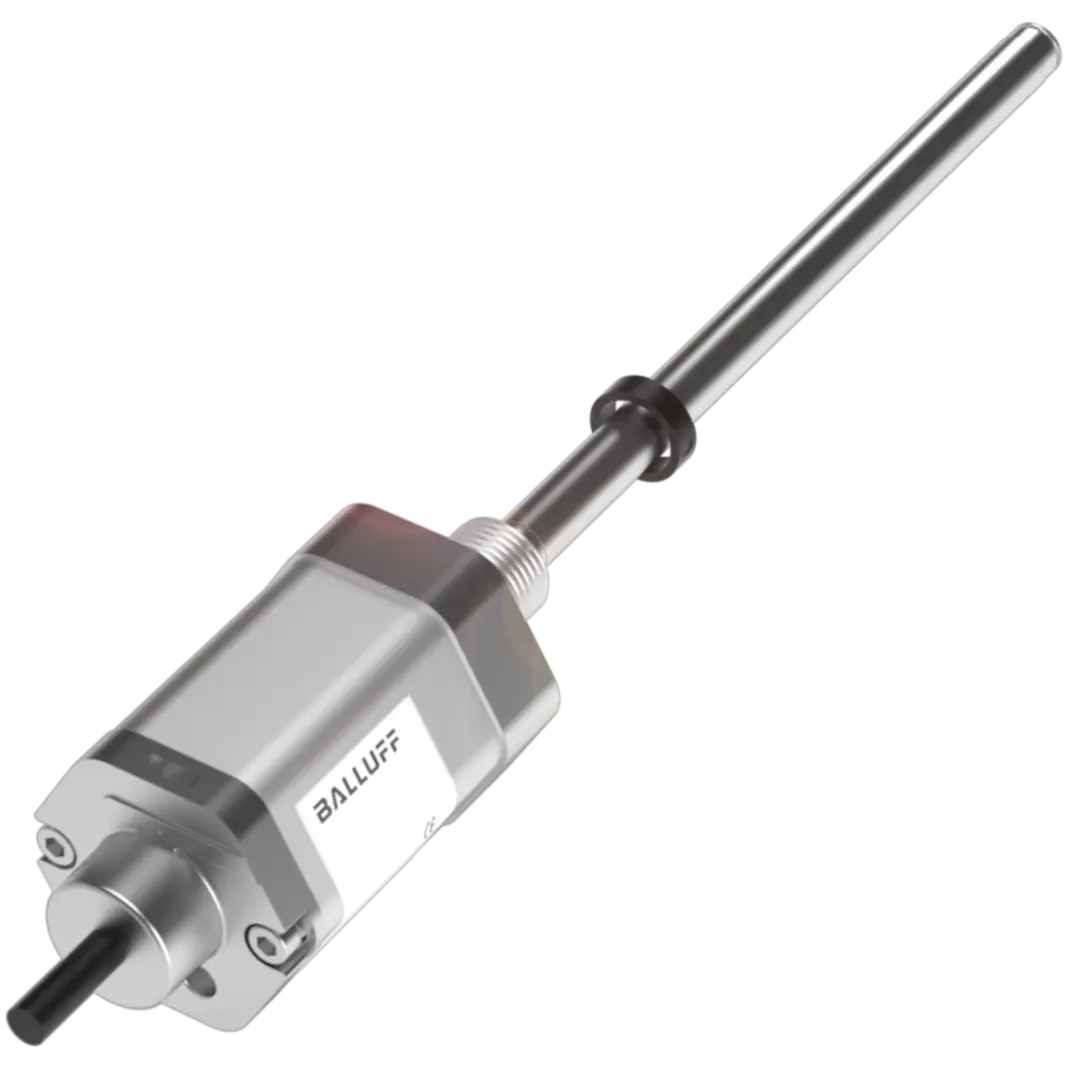

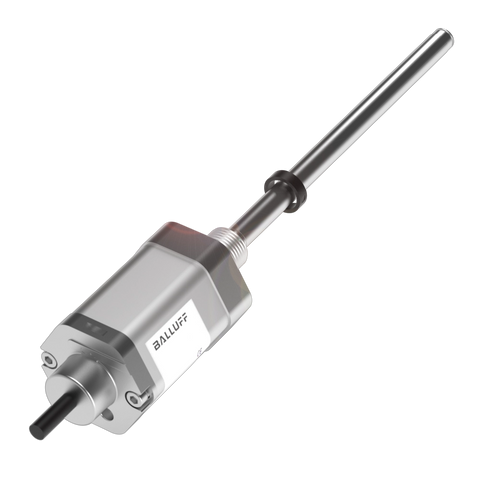

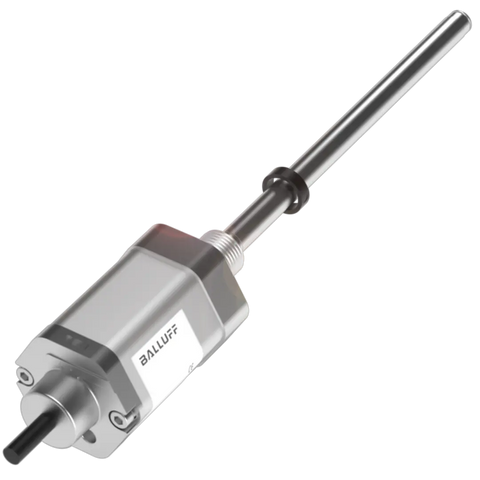

Balluff BTL7-E501-M0100-B-SA316-KA05 Magnetostrictive sensor

The most important application for linear position sensors with a rod design is in hydraulic drive units. They are exceptionally well-suited for use in hydraulic cylinders for position feedback, for molding and rolling mills, or for elevator and hoisting technology. The sensors are installed in the pressure area of the...
Vendor: Balluff
SKU: BTL0HRJ
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
The most important application for linear position sensors with a rod design is in hydraulic drive units. They are exceptionally well-suited for use in hydraulic cylinders for position feedback, for molding and rolling mills, or for elevator and hoisting technology. The sensors are installed in the pressure area of the hydraulic cylinder and have the same pressure resistance as the cylinder itself.
Specifications
Specifications
x
range100 mm
housing_materialAluminium, Anodized
connectionCable, 5.00 m, PUR
operating_voltage10...30 VDC
ambient_temperature-40...85 °C
ip_ratingIP68
approval_conformityCEUKCAcULusWEEE
Documents
Documents
x
Download Datasheet
