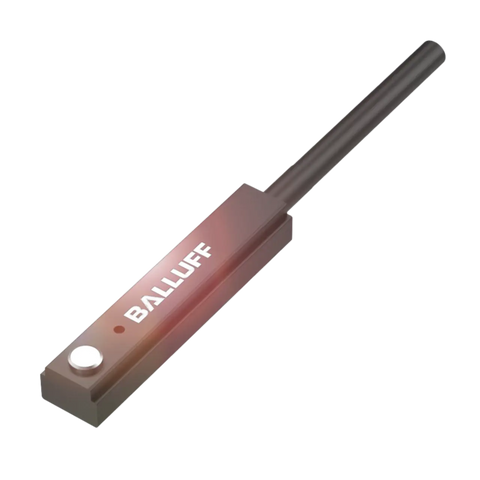

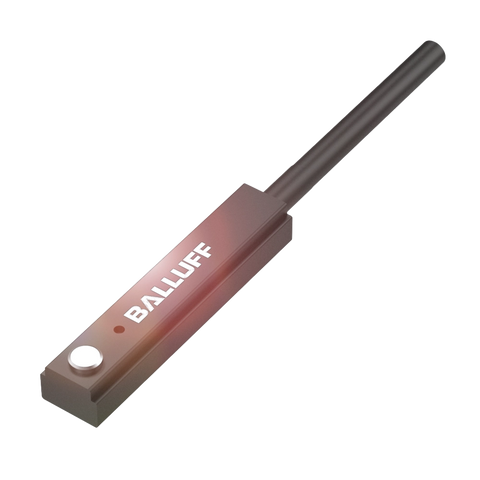

Balluff BMF 307K-R-AS-L-3-03 Magnetic field sensor for T-slot
Balluff BMF 307K-R-AS-L-3-03 Magnetic field sensor for T-slot

Balluff BMF 307K-R-AS-L-3-03 T-slot sensor NO, 2 wire

This inductive sensor is designed for short-distance detection with a 5 mm sensing range and an M12 housing. It features an integrated amplifier and is suitable for applications requiring reliable object detection in tough industrial conditions.
Vendor: Balluff
SKU: BMF008P
Availability: Out Of Stock
Product type: Field Sensing & Switching
Please hurry! Only 0 left in stock
Description
Description
x

This inductive sensor is designed for short-distance detection with a 5 mm sensing range and an M12 housing. It features an integrated amplifier and is suitable for applications requiring reliable object detection in tough industrial conditions.

Specifications
Specifications
x
IP RatingIP65
Compliance/CertificationsCE / WEEE
Material: Housing / GripLCP
Material: Jacket / Cover NutPVC
Material: Sensing Surface / ContactsLCP
Part Depth (mm)4.4mm
Part Width (mm)6.2mm
Cable Length (mm)3 500mm
Part Height (mm)29mm
Tightening Torque0.1 Nm
Switching OutputReed switch (2-wire), polarized normally open (NO)
Switching Frequency (Hz)1000 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 4 - 30 VDC / 4 - 30 VAC
Rated Voltage24 V
Rated Operating Current128 mA
Documents
Documents
x
Download Datasheet
