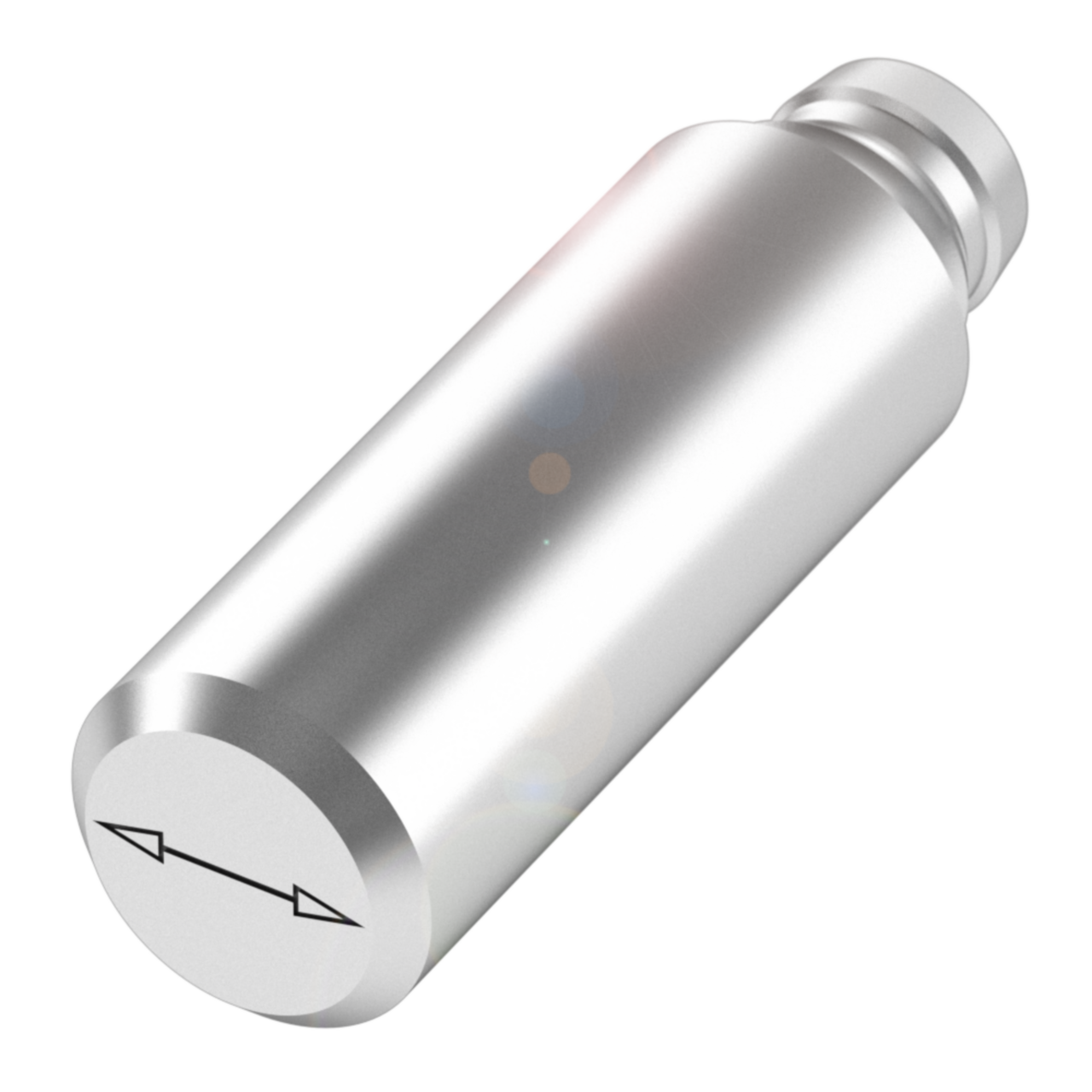

xThe BMF 10E-PS-D-2-SA1-S49 is a tubular magnetic field sensor with a stainless steel housing and sensing surface, housed in a 10mm diameter, 32mm long body suited to compact mounting positions. It detects magnet position and provides a PNP normally open output at operating voltages of 10 to 30 VDC, with an M8x1 male, 3-pin connection. Its IP69K rating and stainless steel construction make it suitable for washdown or hygiene-sensitive environments such as food and beverage or general industrial automation.
Key specifications
- IP rating: IP69K
- Operating voltage: 10 - 30 VDC
- Rated voltage: 75 VDC
- Connection: Connection 1 M8x1-Male, 3-pin / Connection 2 3-pin
- Output: PNP normally open (NO)
Specifications
x| IP Rating | IP69K |
| Compliance/Certifications | CE UKCA cULus Ecolab WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Stainless steel |
| Material: Sensing Surface / Contacts | Stainless steel |
| Part Length (mm) | 32mm |
| Part Diameter (mm) | 10mm |
| Connection Type | Connection 1 M8x1-Male, 3-pin / Connection 2 3-pin |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 10000 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Operating Current | 200 mA |
