Siemens Sinamics Braking module, 600VDC, 250kW / 15s

Product Overview

SINAMICS BRAKING MODULE INPUT: 600 V DC OUTPUT: 250 KW/15 S FOR CHASSIS UNIT GX. This high-performance braking module is designed for SINAMICS drive systems, providing efficient regenerative braking capabilities for industrial applications requiring precise motor control and energy dissipation. The module is specifically engineered for chassis unit GX configurations, delivering 250 kW of braking power for 15-second intervals.

Key Features

• High-Power Braking: 250 kW braking capacity for 15-second duration cycles
• 600V DC Input: Optimized for high-voltage DC bus systems
• Chassis Unit GX Compatible: Specifically designed for SINAMICS chassis unit GX
• Regenerative Braking: Efficient energy dissipation during motor deceleration
• Industrial Grade: Built for demanding industrial automation applications

Technical Specifications

• Article Number: 6SL3300-1AE32-5AA0
• Product Series: SINAMICS S120 Braking Module
• Input Voltage: 600 V DC
• Output Power: 250 kW
• Braking Duration: 15 seconds
• Chassis Compatibility: Chassis Unit GX
• Net Weight: 6.8 kg
• UPC: 662643435184

Electrical Parameters

• Rated Supply Voltage: 600 V DC
• Power Range: 250 kW
• Braking Time: 15 seconds continuous
• Control Output: 24 V DC, 10 mA
• Power Dissipation: High-efficiency braking resistor control
• Thermal Management: Integrated thermal protection

Applications

• Industrial Automation: High-performance motor control systems
• Manufacturing Equipment: CNC machines, automated production lines
• Material Handling: Conveyor systems, cranes, and hoists
• Process Industries: Pumps, fans, and compressor applications
• Machine Tools: Precision machining and manufacturing equipment
• Renewable Energy: Wind turbine pitch control systems

System Integration

• SINAMICS S120 Compatibility: Seamless integration with SINAMICS S120 drive systems
• Chassis Unit GX: Specifically designed for chassis unit GX configurations

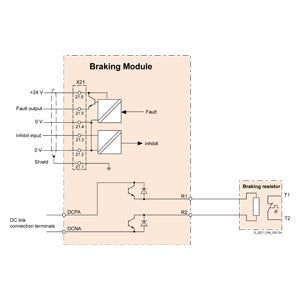

• Braking Resistor Connection: Connects to external braking resistors for energy dissipation
• Drive Control: Integrated with drive control systems for optimal braking performance
• Safety Integration: Compatible with safety functions and monitoring systems

Installation Benefits

• Plug-and-Play Design: Easy installation in chassis unit GX configurations
• Compact Form Factor: Space-efficient design for cabinet installations
• Thermal Protection: Built-in thermal monitoring and protection
• Diagnostic Capability: Integrated diagnostics for system monitoring
• Maintenance-Free: Solid-state design with minimal maintenance requirements

Braking Performance

• Regenerative Braking: Efficient energy recovery during motor deceleration
• Dynamic Braking: Rapid motor stopping capabilities
• Controlled Deceleration: Precise braking control for smooth operations
• Energy Dissipation: Safe and efficient energy dissipation through braking resistors
• Thermal Management: Optimized thermal performance for continuous operation

Safety Features

• Overcurrent Protection: Integrated protection against overcurrent conditions
• Thermal Monitoring: Continuous temperature monitoring and protection
• Fault Diagnostics: Comprehensive fault detection and reporting
• Safe Braking: Fail-safe braking operation in emergency conditions
• Isolation Protection: Electrical isolation for safe operation

Quality & Compliance

• Country of Origin: Germany
• RoHS Compliance: Since 02.02.2017
• Export Control: AL : N / ECCN : 9N9999
• Product Class: C (manufactured to order)
• WEEE Compliance: Take-back obligation applicable
• REACH Compliance: Contains lead >0.1% w/w as per Article 33 requirements

Mechanical Specifications

• Net Weight: 6.8 kg
• Mounting: Chassis unit GX compatible mounting
• Cooling: Natural convection cooling
• Environmental Rating: Industrial environment suitable
• Vibration Resistance: Designed for industrial vibration conditions

Environmental Conditions

• Operating Temperature: Industrial standard operating range
• Storage Temperature: Extended storage temperature range
• Humidity: Industrial humidity tolerance
• Altitude: Standard industrial altitude operation
• Pollution Degree: Suitable for industrial pollution environments

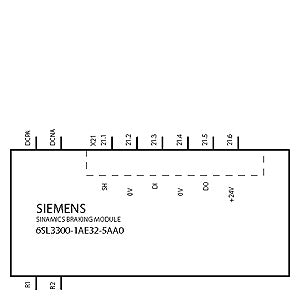

Connectivity

• DC Bus Connection: 600 V DC input connection
• Braking Resistor Output: High-power braking resistor connections
• Control Interface: 24 V DC control output
• Diagnostic Interface: System diagnostic connections
• Ground Connection: Chassis and functional ground connections

Ordering Information

• Quantity Unit: 1 piece
• Packaging Quantity: 1 unit
• Product Class: Made to order (non-returnable)
• Delivery: Industrial packaging for safe transport

Related Products

• Braking Resistors: External braking resistors for energy dissipation
• Chassis Units: SINAMICS chassis unit GX components
• Drive Modules: SINAMICS S120 drive modules
• Control Units: SINAMICS control and monitoring units
• Safety Components: Safety-related drive components
