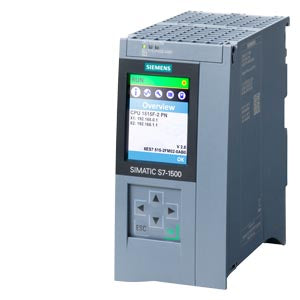

Siemens 1515F-2 PN Central processing unit, 2-port switch Part number 6ES7515-2FM02-0AB0

Product Overview

The Siemens SIMATIC S7-1500F, CPU 1515F-2 PN, central processing unit with work memory 750 KB for program and 3 MB for data, article number **6ES7515-2FM02-0AB0**, is a high-performance safety-enabled programmable logic controller (PLC) CPU designed for complex automation tasks. This CPU integrates PROFINET IRT communication with dual PROFINET ports and provides advanced processing performance with fast execution times, making it suitable for industrial control applications where both standard and safety-related automation functions must be handled by a single controller.

Key Features

• SIMATIC S7-1500F safety CPU model CPU 1515F-2 PN
• Integrated communication via PROFINET IRT with 2-port switch
• 750 KB integrated program memory
• 3 MB integrated data memory
• High processing performance with bit execution times of approx. 30 ns
• Supports both standard and safety automation tasks
• Display and operator keys for local status and control
• SIMATIC memory card required for load memory and program storage
• 24 V DC supply voltage

Technical Specifications

• Article Number: 6ES7515-2FM02-0AB0
• Product Family: SIMATIC S7-1500F PLC CPUs
• Device Type: Central processing unit (safety PLC)
• CPU Model: CPU 1515F-2 PN
• Program Memory: 750 KB
• Data Memory: 3 MB
• Communication Interfaces: PROFINET IRT with integrated 2-port switch
• Display: Integrated status display
• Supply Voltage: 24 V DC
• Power Consumption: Balanced power draw from bus
• Memory Card: Required for load memory (up to 32 GB possible)
• Processing Performance: Fast bit and word execution times
• Operating Ambient Temperature: Standard industrial range
• Protection Class: IP20 when installed

Compliance & Standards

• Designed for safety-related control applications
• Supports safety functions in integrated safety architectures
• Meets Siemens quality and performance criteria for S7-1500F CPUs
• Suitable for PROFINET-based communication in industrial automation

Applications

The Siemens 6ES7515-2FM02-0AB0 SIMATIC S7-1500F CPU 1515F-2 PN is used as the central controller in distributed and central automation systems requiring both standard and functional safety capabilities. Typical applications include machine control, process automation, and safety-integrated systems where safety logic and standard automation logic need to be executed together. This safety CPU is also suited for use in modular systems with high performance and communication demands.
