Siemens

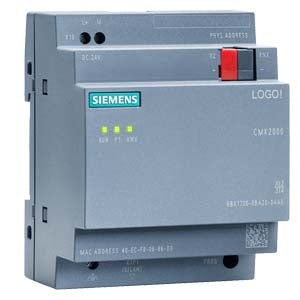

Siemens - CMK2000 Communication module for integrating the LOGO! 8 in the building system Part number 6BK1700-0BA20-0AA0
Back Order
💬
Ask an Expert - Technical Support Available
Product Description
LOGO! CMK2000 Communication module for integrating the LOGO! 8 in the building system bus KNX; connection 24 V DC 0.04A 1 RJ45 port for Ethernet 50 communication objects time-of-day synchronization Configuration/diagnostics via web interface The CMK2000 is a communication module from the LOGO! family with a KNX interface. With the help of the CMK2000, LOGO! 8 can be integrated into the KNX system.
Technical Specifications
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Depth | 58.5 mm |
| Explosion safety category for dust | None |
| Height | 90 mm |
| IO link master | No |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces other | 1 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces wireless | 0 |
| Number of interfaces PROFINET | 0 |
| Radio standard Bluetooth | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| Radio standard WLAN 802.11 | No |
| Redundancy | No |
| Suitable for safety functions | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for ASI | No |
| Supporting protocol for CAN | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherCAT | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for KNX | Yes |
| Supporting protocol for LON | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for other bus systems | Yes |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for TCP/IP | Yes |
| Type of data transmission | Serial |
| Width | 71.5 mm |
| With optical interface | No |
| With potential separation | Yes |
