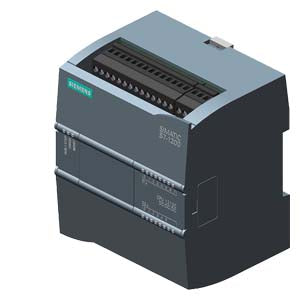

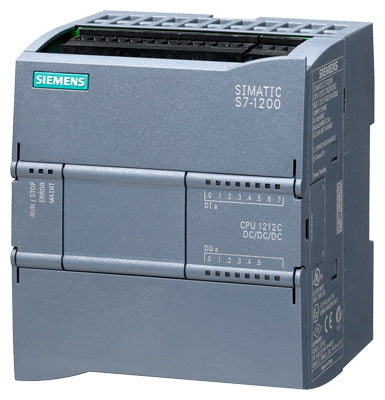

Siemens 1212C Compact CPU, program/data memory 75KB Part number 6ES7212-1AE40-0XB0

Product Overview

SIMATIC S7-1200, CPU 1212C, compact CPU, DC/DC/DC, onboard I/O: 8 DI 24 V DC; 6 DO 24 V DC; 2 AI 0-10 V DC, power supply: DC 20.4-28.8 V DC, program/data memory 100 KB

Key Features & Specifications

The SIMATIC S7-1200 CPU 1212C is a compact programmable logic controller designed for small-scale automation applications. This versatile control unit combines processing power with integrated I/O capabilities in a space-efficient design.

Technical Specifications:

• Power Supply: DC 20.4-28.8V DC
• Digital Inputs: 8 x 24V DC inputs
• Digital Outputs: 6 x 24V DC outputs, 0.5A each
• Analog Inputs: 2 x 0-10V DC analog inputs
• Memory: 100KB program/data memory
• Communication: PROFINET port for network connectivity
• Protection Rating: IP20
• Net Weight: 0.294 kg
• Dimensions: 10.10 x 11.00 x 8.50 cm

Applications & Benefits

The CPU 1212C is ideal for small stand-alone automation systems and distributed control applications. It supports standard programming languages including LAD (Ladder Logic), FBD (Function Block Diagram), and SCL (Structured Control Language) according to IEC 61131 standards. The integrated I/O eliminates the need for additional expansion modules in many applications, reducing system complexity and cost.

Compatibility & Integration

This controller integrates seamlessly with the SIMATIC ecosystem and can be programmed using TIA Portal (Totally Integrated Automation Portal) engineering software. It supports communication with HMI panels, drives, and other automation components through PROFINET connectivity.

Compliance & Standards

• RoHS compliant since 12.12.2013
• Country of origin: Germany
• EAN: 4047623402701
• UPC: 887621769024
• Export Control: AL : N / ECCN : 9N9999

Download existing graphical data for this product:

Data Sheet

Product Support Page

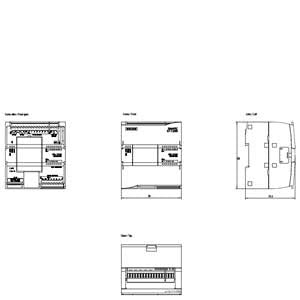

CAD/3D Models

Additional Information

This product is part of the SIMATIC S7-1200 series and represents the latest generation evolution from the classic S7-200 PLC family. It offers enhanced performance, improved connectivity, and expanded functionality while maintaining the user-friendly operation that characterizes Siemens automation solutions.
