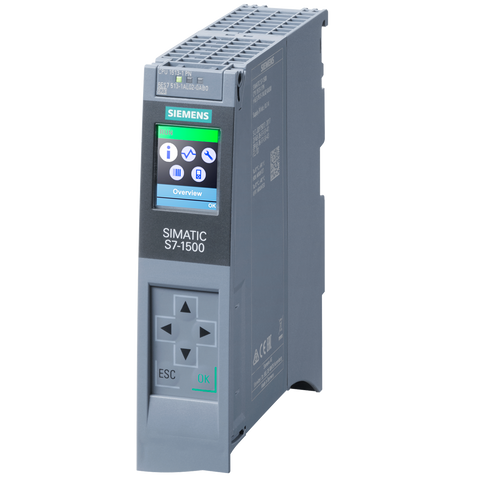

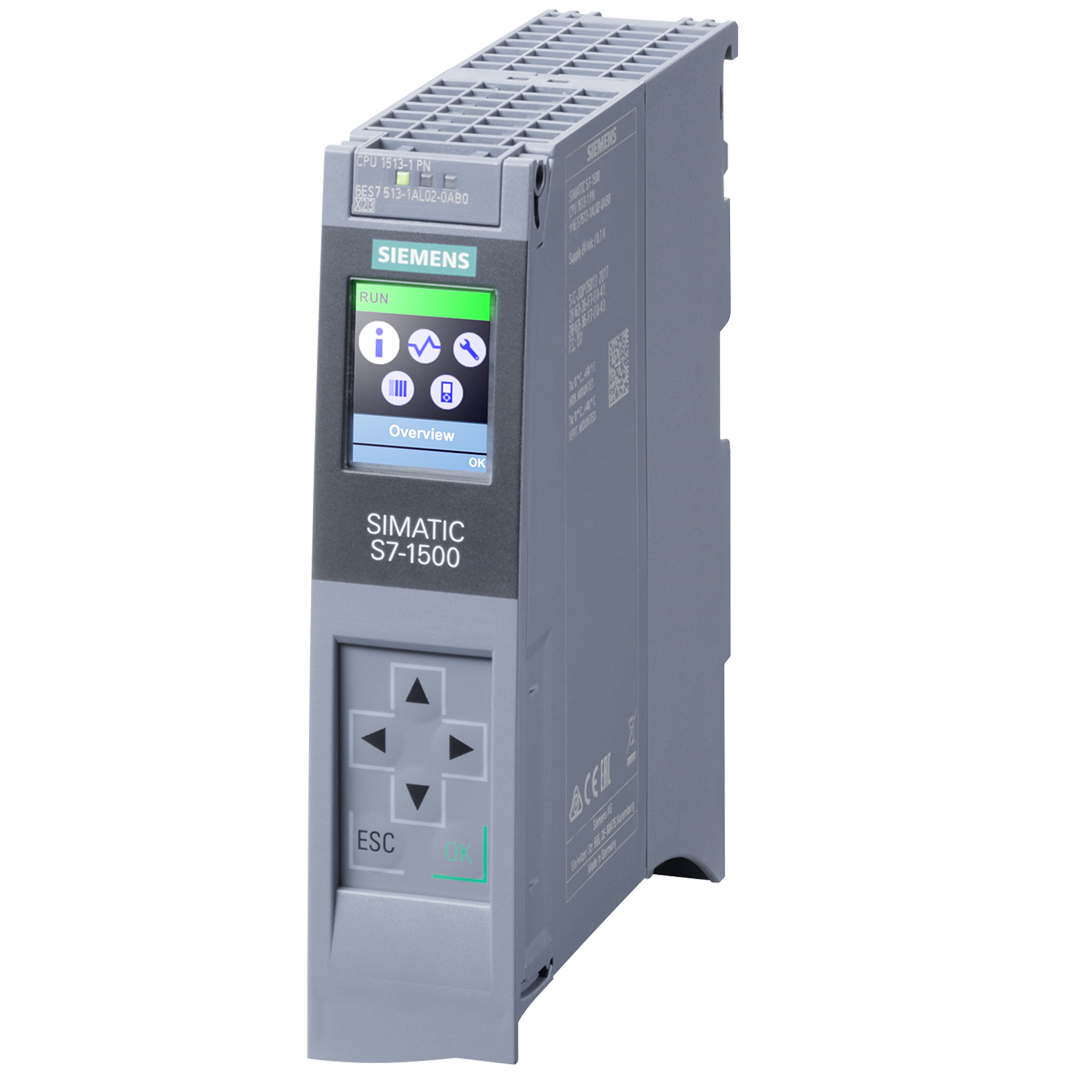

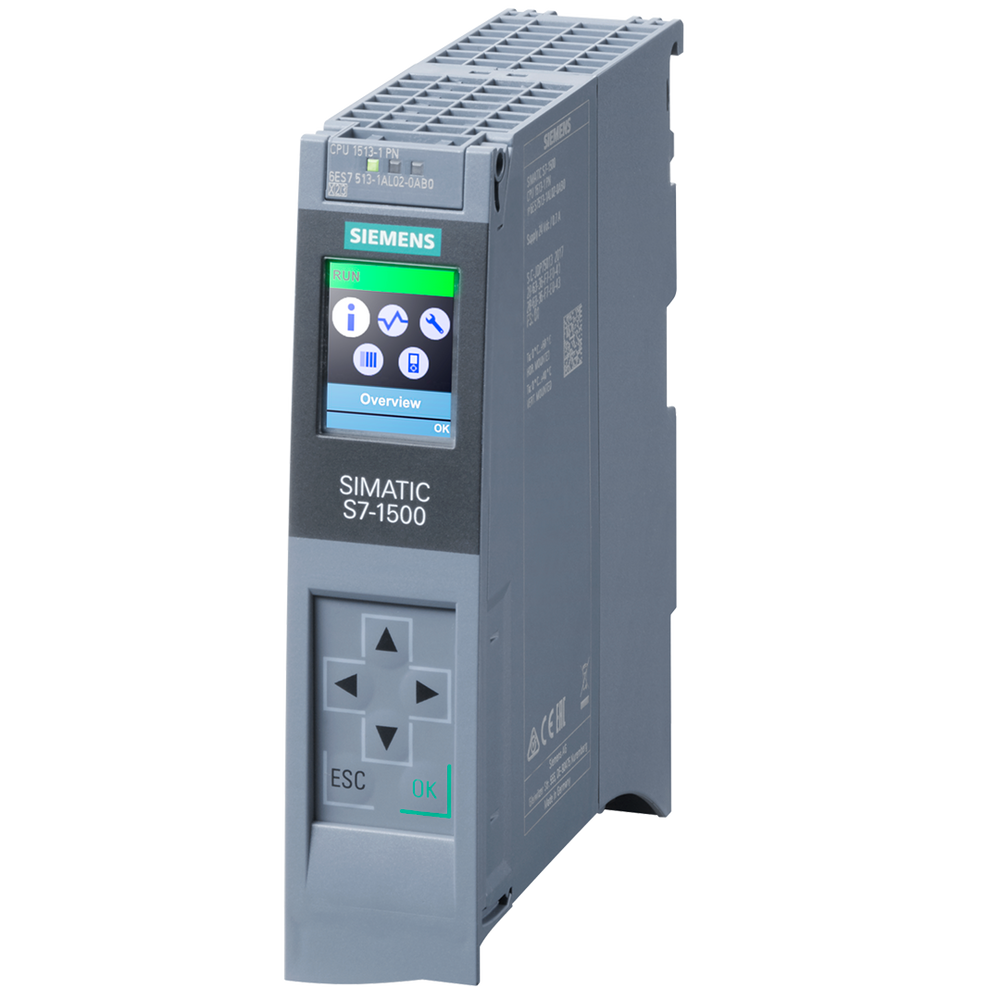

Siemens Simatic S7-1500 Central processing unit with 300KB + 1.5MB

Product Overview

The 6ES7513-1AL02-0AB0 is a SIMATIC S7-1500 CPU 1513-1 PN central processing unit with 300KB work memory for program and 1.5MB for data. This standard CPU features PROFINET IRT with 2-port switch and delivers 40ns bit performance for industrial automation applications requiring reliable control and communication capabilities.

Important Notice This product is cancelled since April 1, 2025 and is only available as a spare part. For new projects, please consider the successor product 6ES7513-1AM03-0AB0 which offers enhanced performance with 600KB program memory, 2.5MB data memory, and 6ns bit performance.

Key Features

• Processing Power: High-performance CPU with 40ns bit execution time
• Memory Configuration: 300KB work memory for program, 1.5MB for data
• Communication Interface: PROFINET IRT with 2-port switch
• Real-Time Communication: Industrial Real-Time communication capability
• Network Integration: 2-port switch for flexible network topology
• Memory Card: SIMATIC Memory Card required for operation
• Compact Design: Space-efficient S7-1500 standard form factor
• Operating Temperature: 0°C to +60°C
• Dimensions: Compatible with S7-1500 standard mounting rail
• Weight: 0.449 kg

Technical Specifications

• CPU Type: 1513-1 PN standard CPU
• Work Memory: 300KB for program execution
• Data Memory: 1.5MB for data storage
• Bit Performance: 40ns bit execution time
• Communication Interface: PROFINET IRT with 2-port switch
• Real-Time Communication: Industrial Real-Time capability
• Network Integration: 2-port switch for daisy-chain topology
• Memory Card: SIMATIC Memory Card required (ordered separately)
• Processing Speed: Optimized for standard automation applications
• Expansion Capability: Supports S7-1500 I/O modules

Applications

The CPU 1513-1 PN was designed for standard automation applications requiring reliable control and PROFINET communication. Originally used in manufacturing systems, machine control, process automation, and applications requiring real-time communication with distributed I/O systems.

Communication Capabilities

• PROFINET IRT: Industrial Real-Time communication with 2-port switch
• Network Topology: Flexible network configurations with integrated switch
• Real-Time Performance: Optimized for time-critical applications
• Integration: Seamless integration with SIMATIC systems
• Diagnostics: Comprehensive communication diagnostics
• Distributed I/O: Support for distributed I/O systems

Programming and Configuration

• STEP 7 (TIA Portal): Full configuration and programming support
• IEC 61131-3: Complete programming language support
• Function Blocks: Extensive library of function blocks
• Motion Control: Basic motion control capabilities
• Communication Setup: PROFINET interface configuration
• Diagnostic Configuration: Comprehensive diagnostic setup

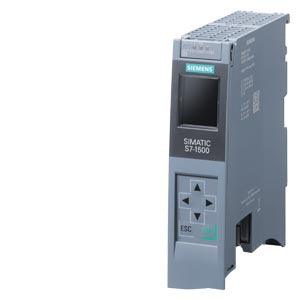

Successor Product Information

• Successor Model: 6ES7513-1AM03-0AB0
• Enhanced Performance: 6ns bit performance (vs. 40ns)
• Increased Memory: 600KB program memory (vs. 300KB)
• Extended Data Memory: 2.5MB data memory (vs. 1.5MB)
• Improved Capabilities: Enhanced processing power and memory capacity
• Better Performance: Significantly faster execution times

Memory Management

• Program Memory: 300KB for user program storage
• Data Memory: 1.5MB for process data and variables
• Memory Card: SIMATIC Memory Card required for program storage
• Memory Expansion: Limited by hardware specifications
• Data Retention: Battery-backed data retention capability
• Memory Optimization: Efficient memory utilization

Product Information

• Article Number: 6ES7513-1AL02-0AB0
• Net Weight: 0.449 kg
• Packaging Dimensions: 15.10 x 15.20 x 4.70 cm
• EAN: 4047623408635
• UPC: 804766675683
• Country of Origin: Germany
• Product Group: 4A9I

Compliance & Environmental

• RoHS Compliance: Yes (since 29.03.2018)
• WEEE Take-Back: Yes (2012/19/EU)
• REACH Article 33: Contains lead, lead monoxide, silicic acid lead salt, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol, Bisphenol A, and bis(α,α-dimethylbenzyl) peroxide >0.1% w/w
• Export Control: ECCN: 9N9999 / AL: N
• Product Lifecycle: PM410:Product cancellation (cancelled since 01.04.2025)

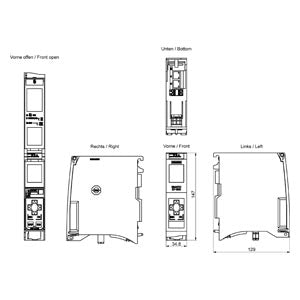

Download existing graphical data for this product:

• Technical Datasheet
• Equipment Manual - CPU 1513-1 PN
• Firmware Update Information
