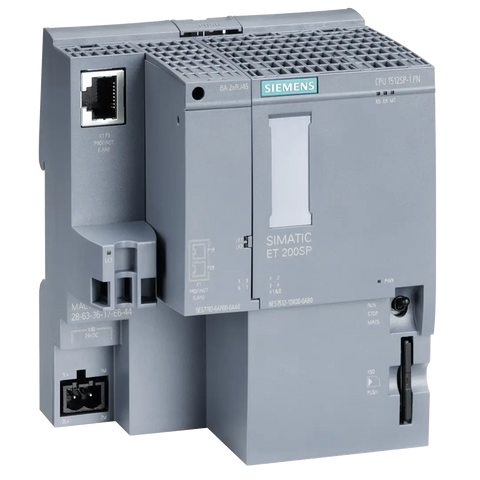

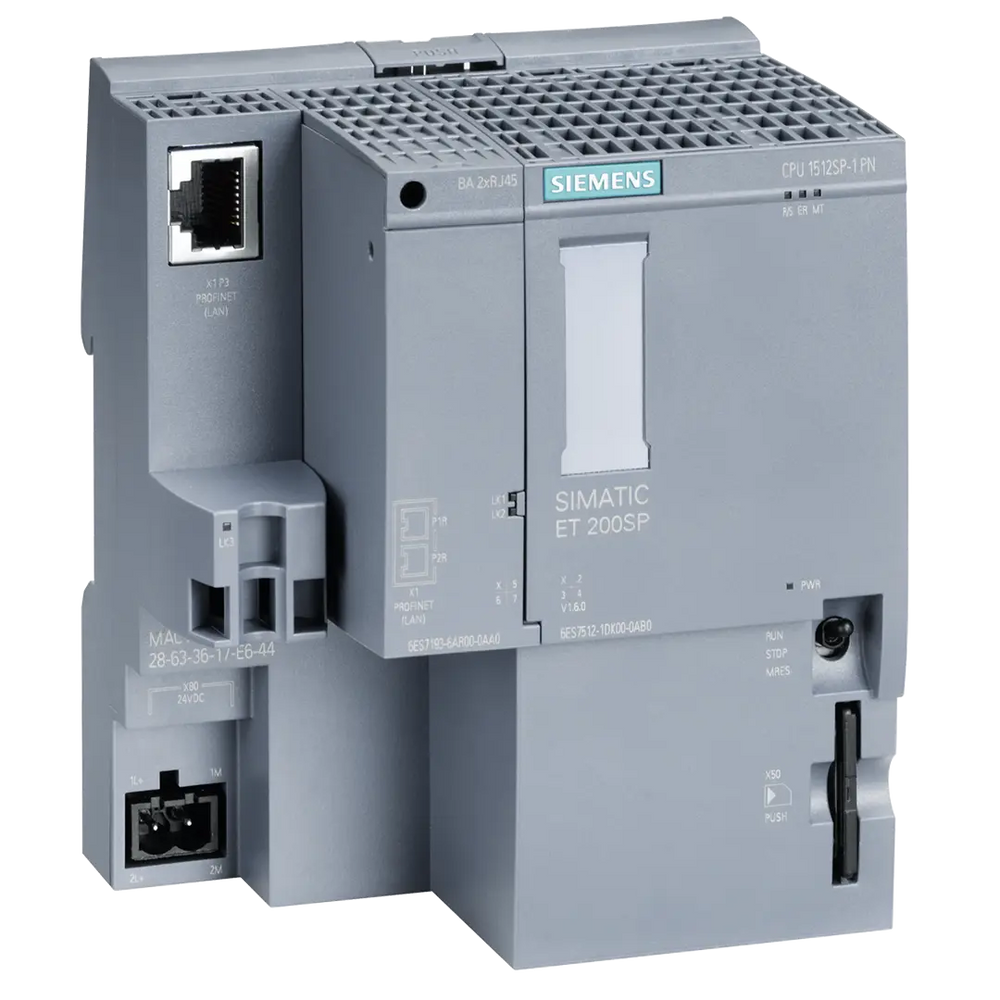

Siemens 1512SP-1 PN Central processing unit for ET 200SP Part number 6ES7512-1DK01-0AB0

EAN / Barcode 4047623406051
Product Type Control Panel
Product Class Fieldbus, decentr. periphery - basic appliance
Category HMI's & PLC's
Sub-category CPU
ETIM Class Fieldbus, decentr. periphery - basic appliance
Back Order
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

This SIMATIC CPU 1512SP-1 PN is a central processing unit with 200 KB work memory for programs and 1 MB for data. It includes a PROFINET IRT interface with a 3-port switch and requires a SIMATIC Memory Card. It supports multi-hot swapping and isochronous mode.

Technical Specifications

Current Consumption0.6A - 0.9A
Degree of protection (IP)IP20
Depth75 mm
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possibleYes
Height117 mm
Input voltage DC28.8 V
IP RatingIPv4
Max. input current DC0.9 A
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-4851
Number of interfaces PROFINET1
Number of slots80
Packaging size / unitpc(s)
Part Depth (mm)75mm
Part Height (mm)117mm
Part Width (mm)100mm
Rail mounting possibleYes
Supply Voltage24 V (DC Rated Value) / 19.2 V (DC Lower Limit) / 28.8 V (DC Upper limit)
Supporting protocol for ASIYes
Supporting protocol for ModbusYes
Supporting protocol for PROFIBUSYes
Supporting protocol for PROFINET IOYes
Supporting protocol for TCP/IPYes
System accessoryYes
Temperature: Operating-25°C to 60°C (horizontal installation) / '-25°C to 50°C (vertical installation)
Type of voltage (input voltage)DC
Wall mounting/direct mountingYes
Weight (g)310g
Width100 mm
With bus coupler for modular station connectionYes
With optical interfaceYes
With pluggable modules, analogue I/OYes
With pluggable modules, central modulesYes
With pluggable modules, communication modulesYes
With pluggable modules, digital I/OYes
With pluggable modules, function and technology modulesYes
With pluggable modules, othersYes
Country of OriginGermany
