Siemens Central processing unit with 300KB + 1MB memory Siemens
📄 Datasheet
Siemens

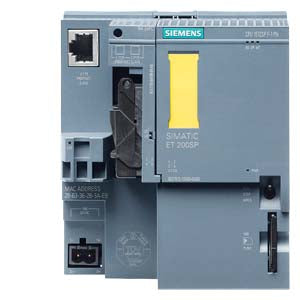

Siemens Central processing unit with 300KB + 1MB memory Part number 6ES7512-1SK01-0AB0

EAN / Barcode 4047623406037
Product Type Control Panel
Product Class Fieldbus, decentr. periphery - basic appliance
Category HMI's & PLC's
Sub-category CPU
ETIM Class Fieldbus, decentr. periphery - basic appliance
Back Order
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

*** spare part *** SIMATIC DP, CPU 1512SP F-1 PN for ET 200SP, central processing unit with work memory 300 KB for program and 1 MB for data, 1st interface: PROFINET IRT with 3-port switch, 48 ns bit performance, SIMATIC Memory Card required, BusAdapter required for port 1 and 2

Technical Specifications

Degree of protection (IP)IP20
Depth75 mm
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possibleYes
Height117 mm
Input voltage DC28.8 V
Max. input current DC0.9 A
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-4851
Number of interfaces PROFINET1
Number of slots80
Rail mounting possibleYes
Suitable for safety functionsYes
Supporting protocol for ASIYes
Supporting protocol for ModbusYes
Supporting protocol for PROFIBUSYes
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFIsafeYes
Supporting protocol for TCP/IPYes
System accessoryYes
Type of voltage (input voltage)DC
Wall mounting/direct mountingYes
Width100 mm
With bus coupler for modular station connectionYes
With optical interfaceYes
With pluggable modules, analogue I/OYes
With pluggable modules, central modulesYes
With pluggable modules, communication modulesYes
With pluggable modules, digital I/OYes
With pluggable modules, function and technology modulesYes
With pluggable modules, othersYes
Part Width13 mmmm
Part Height13 mmmm
Part Depth8 mmmm
Weight391 gg
Country of OriginGermany
