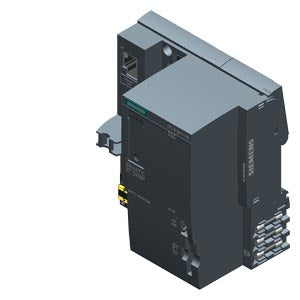

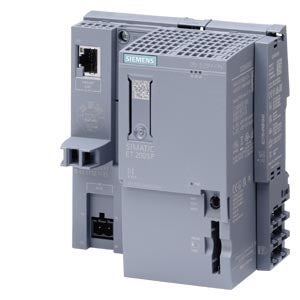

SIEMENS SIMATIC DP, CPU 1512SP F-1 PN for ET 200SP, Central processing unit with Work memory 300 KB for program and 1 MB for data

Product Overview

The 6ES7512-1SM03-0AB0 is a SIMATIC DP CPU 1512SP F-1 PN for ET 200SP distributed I/O system. This central processing unit features 600KB work memory for program and 2MB for data with PROFINET IRT and 3-port switch. Designed for safety-critical distributed automation applications, this safety-certified CPU delivers 6ns bit performance with compact design optimized for space-constrained installations.

Key Features

• Processing Power: High-performance CPU with 6ns bit execution time
• Memory Configuration: 600KB work memory for program, 2MB for data
• Safety Certification: F-CPU with integrated safety functions for fail-safe applications
• PROFINET IRT: Industrial Real-Time communication with 3-port switch
• Distributed I/O: Specifically designed for ET 200SP distributed I/O system
• Compact Design: Space-efficient design for distributed installations
• Memory Card: SIMATIC Memory Card required for operation
• Bus Adapter: BusAdapter required for port 1 and 2
• Operating Temperature: -25°C to +60°C
• Weight: 0.344 kg

Technical Specifications

• CPU Type: 1512SP F-1 PN with safety functions
• Work Memory: 600KB for program execution
• Data Memory: 2MB for data storage
• Bit Performance: 6ns bit execution time
• Communication Interface: PROFINET IRT with 3-port switch
• Network Integration: 3-port switch for flexible network topology
• Memory Card: SIMATIC Memory Card required (ordered separately)
• Bus Adapter: Required for port 1 and 2 (ordered separately)
• Processing Speed: High-performance for safety-critical applications
• Safety Functions: Integrated fail-safe operation

Applications

The CPU 1512SP F-1 PN is specifically designed for safety-critical distributed automation applications where space is limited. Ideal for machine safety systems, process control, manufacturing automation, and applications requiring fail-safe operation with distributed I/O in compact installations.

Safety Features

• Functional Safety: F-CPU with integrated safety functions
• Fail-Safe Operation: Designed for safety-critical applications
• Safety Communication: Safety-related communication capabilities
• Safety Certification: Compliant with international safety standards
• Safety Program Memory: Dedicated memory for safety programs
• Safety Diagnostics: Comprehensive safety diagnostic functions
• Safety Integrity: High safety integrity level compliance

ET 200SP System Integration

• Distributed I/O: Optimized for ET 200SP distributed I/O system
• Modular Design: Flexible system expansion with ET 200SP modules
• Compact Installation: Space-efficient distributed automation
• Hot Swapping: Support for hot-swappable I/O modules
• System Diagnostics: Comprehensive system-wide diagnostics
• Configuration Flexibility: Flexible I/O configuration options

Communication Capabilities

• PROFINET IRT: Industrial Real-Time communication with 3-port switch
• Network Topology: Flexible network configurations with integrated switches
• Real-Time Performance: Optimized for time-critical applications
• Distributed Architecture: Optimized for ET 200SP distributed I/O system
• Redundancy: Support for redundant communication paths
• Integration: Seamless integration with SIMATIC systems

Configuration Options

• STEP 7 (TIA Portal): Full configuration and programming support
• Safety Programming: Integrated safety function programming
• ET 200SP Integration: Optimized for ET 200SP system configuration
• Communication Setup: PROFINET IRT interface configuration
• Diagnostic Configuration: Comprehensive diagnostic setup
• Memory Management: Flexible memory allocation

System Requirements

• SIMATIC Memory Card: Required for program storage and operation
• Bus Adapter: Required for port 1 and 2 connections
• ET 200SP Modules: Compatible with ET 200SP I/O modules
• Power Supply: ET 200SP power supply modules required
• Configuration Software: STEP 7 (TIA Portal) for programming
• Safety Configuration: Safety engineering tools required

Product Information

• Article Number: 6ES7512-1SM03-0AB0
• Net Weight: 0.344 kg
• Packaging Dimensions: 13.30 x 13.50 x 8.20 cm
• EAN: 4047623412748
• UPC: 195125392700
• Country of Origin: Germany
• Product Group: 4A79

Compliance & Environmental

• RoHS Compliance: Yes (since 24.11.2022)
• WEEE Take-Back: Yes (2012/19/EU)
• REACH Article 33: Contains lead, lead monoxide, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, Bisphenol A, and bis(α,α-dimethylbenzyl) peroxide >0.1% w/w
• Export Control: AL: N / ECCN: 9N9999
• Product Lifecycle: PM300:Active Product
