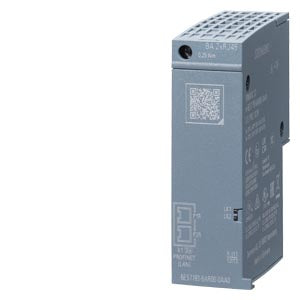

Siemens Simatic ET 200SP Bus adapter, 2 x RJ45

Product Overview

The SIMATIC ET 200SP BusAdapter BA 2xRJ45 delivers advanced PROFINET connectivity solutions for demanding industrial automation applications. Featuring dual RJ45 ports with integrated switch functionality, this compact bus adapter provides seamless network connectivity and flexible communication options for versatile ET 200SP distributed I/O system implementations requiring reliable PROFINET protocol support and network extension capabilities.

Key Features

• Dual RJ45 PROFINET Ports: Two integrated RJ45 sockets providing switch functionality for flexible network topologies and daisy-chain configurations
• Integrated Switch Technology: Built-in 2-port switch enables seamless network extension and reduces infrastructure requirements
• PROFINET IO Protocol Support: Native support for PROFINET IO communication protocol ensuring high-speed data exchange
• Compact Design: Space-efficient 20mm width design for optimal cabinet space utilization in distributed control systems
• 100m Cable Length Support: Copper conductor cable support up to 100 meters for extended network reach
• Hot-Swappable Operation: Module replacement capability during operation without system shutdown or wiring disruption
• Universal Compatibility: Compatible with SIMATIC ET 200SP interface modules and various automation controllers
• Industrial-Grade Construction: Robust design for demanding industrial environments with extended temperature ranges

Technical Specifications

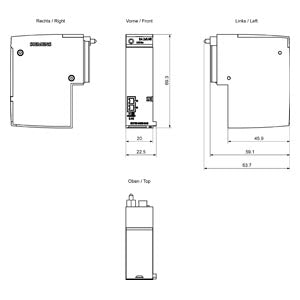

• Product Type: BA 2x RJ45 Bus Adapter | Dimensions: 20mm x 69.5mm x 59mm (W x H x D)
• Interface Type: PROFINET IO | Weight: 0.051 kg
• Number of Ports: 2 x RJ45 (integrated switch) | Cable Length: Up to 100m (copper conductors)

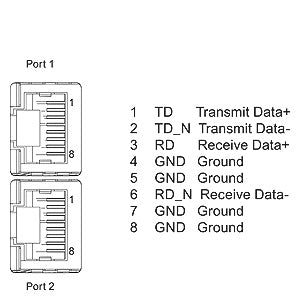

• Connection Type: RJ45 Ethernet sockets | Switch Functionality: 2-port integrated switch
• Operating Temperature: -30°C to +60°C (horizontal), -30°C to +50°C (vertical)
• Installation Altitude: Up to 5,000m above sea level | Protection Rating: IP20
• Package Dimensions: 6.70 x 7.50 x 2.90 cm | Communication Protocol: PROFINET IO
• Network Topology: Line, star, and ring configurations supported

Applications & Integration

Primary Applications:

• SIMATIC ET 200SP distributed I/O systems requiring PROFINET connectivity
• Industrial Ethernet network extension and distribution in automation systems
• Machine-level networking for decentralized control architectures
• Factory automation with high-speed communication requirements
• Network infrastructure for process control and monitoring systems

System Compatibility:

• Compatible with SIMATIC ET 200SP interface modules (IM 155-6PN series)
• Integration with SIMATIC S7-1500, S7-1200, and other PROFINET-enabled controllers
• Support for TIA Portal engineering environment and configuration tools
• Seamless integration with SIMATIC HMI systems and visualization platforms
• Compatible with various PROFINET devices and third-party automation components
• Hot-swappable module replacement without system interruption

Quality & Compliance

• Status: Active Product (PM300) | Origin: Germany
• EAN: 4025515080930 | UPC: 887621011024
• RoHS Compliant: Since 31.01.2012 | WEEE: Take-back obligation applicable
• REACH: Contains lead and lead monoxide (lead oxide) above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: 9N9999
• Certifications: FM (hazardous locations), NK/Nippon Kaiji Kyokai (maritime), CCS China Classification Society (maritime)
• Standards: Complies with industrial Ethernet and PROFINET specifications

Package Contents

• 1 × ET 200SP BusAdapter BA 2xRJ45, technical documentation, installation accessories

Download existing graphical data for this product:

• Technical Datasheet
• Product Information Page
• Official Support Documentation
• CAD Models and 3D Data
• ET 200SP BusAdapter Manual
