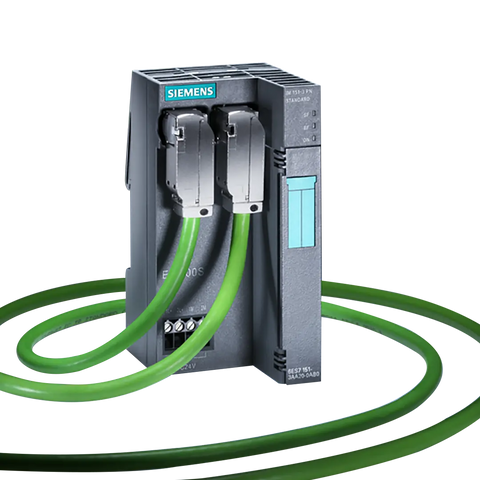

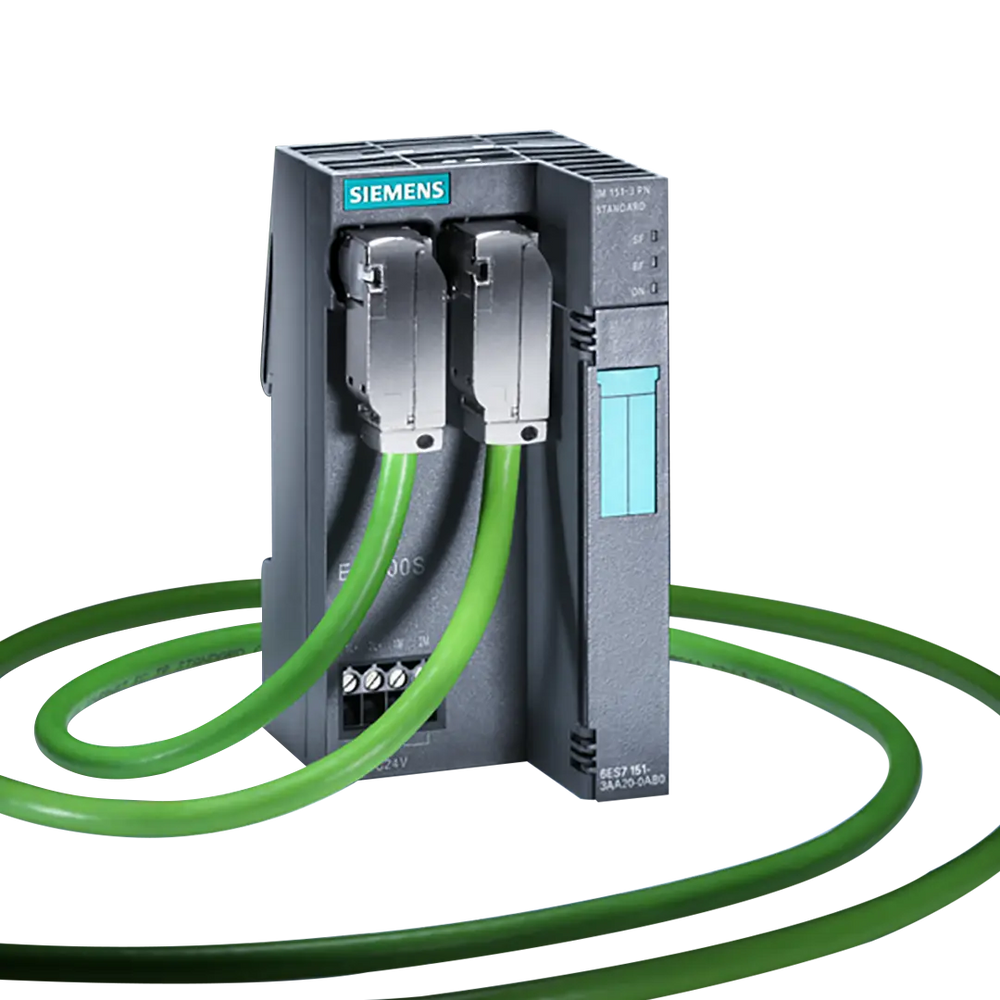

Siemens Simatic DP Interface module IM 151-3 PN ST Part number 6ES7151-3AA23-0AB0

Name: Siemens Simatic DP Interface module IM 151-3 PN ST
Brand: Siemens
SKU: 6ES7151-3AA23-0AB0

EAN / Barcode 4025515076339

Product Type Control Panel

Product Class Fieldbus, decentr. periphery - communication module

Category HMI's & PLC's

Sub-category Network

ETIM Class Fieldbus, decentr. periphery - communication module

Back Order

View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

SIMATIC DP, Interface module IM 151-3 PN ST for ET 200S Transmission rate 100 Mbit/s max. 63 power, electronic or motor starter modules up to 2 m width can be connected; 2x bus connections via RJ45 incl. Termination module

Technical Specifications

Degree of protection (IP)	IP20
Depth	75 mm
Height	119.5 mm
Rail mounting possible	Yes
Supply voltage DC	20.4 V
Supporting protocol for PROFINET IO	Yes
System accessory	Yes
Voltage type (supply voltage)	DC
Width	60 mm
With potential separation	Yes
Part Width	8 mm
Part Height	12 mm
Part Depth	7 mm
Weight	201 g
Country of Origin	Germany
